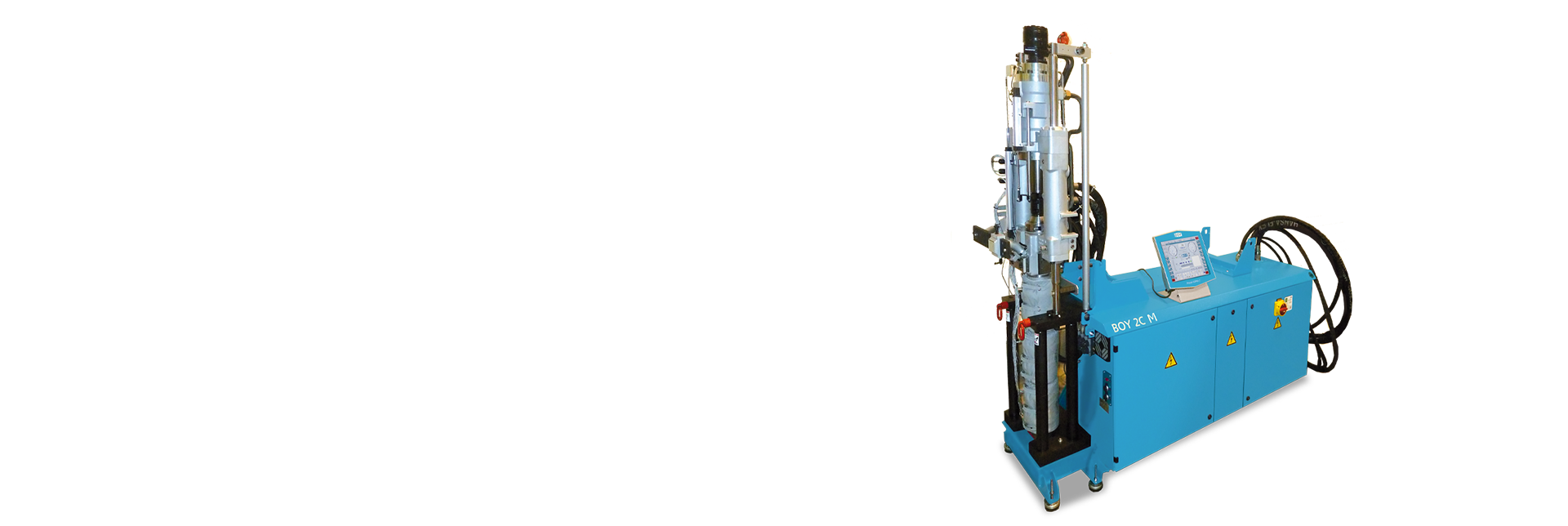

BOY 2C M – Additional Injection Unit for 2-Component Injection Moulding
Flexible system for greater efficiency and automation
The BOY 2C M is an additional unit with its own hydraulic drive and separate control system, designed to expand existing machines for 2-component processes. With plasticising volumes of up to 280.5 cm³, versatile injection units and transportable design, it delivers flexibility, mobility and cost-effective performance.
Versatile installation options & space-saving design

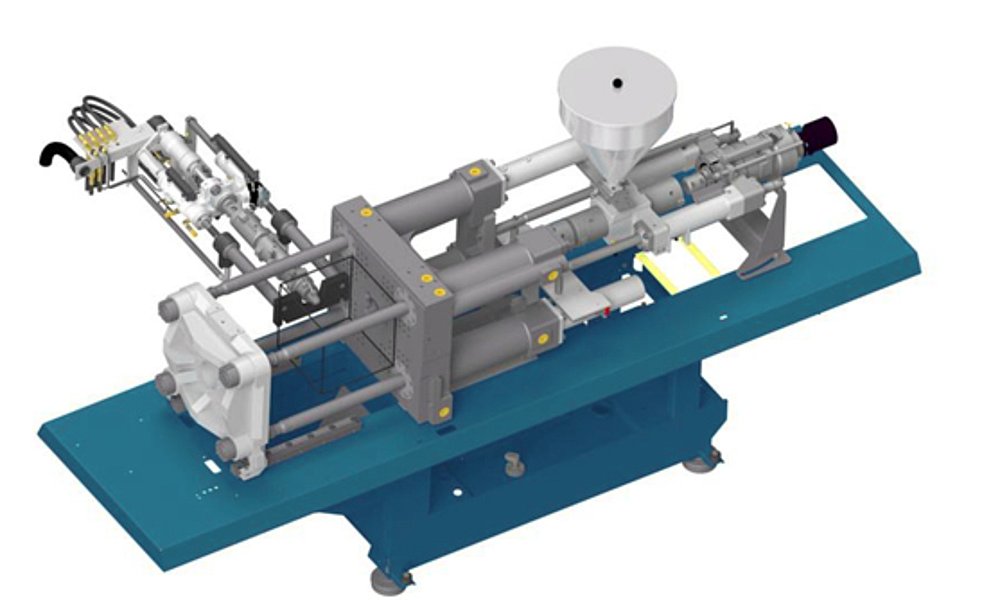

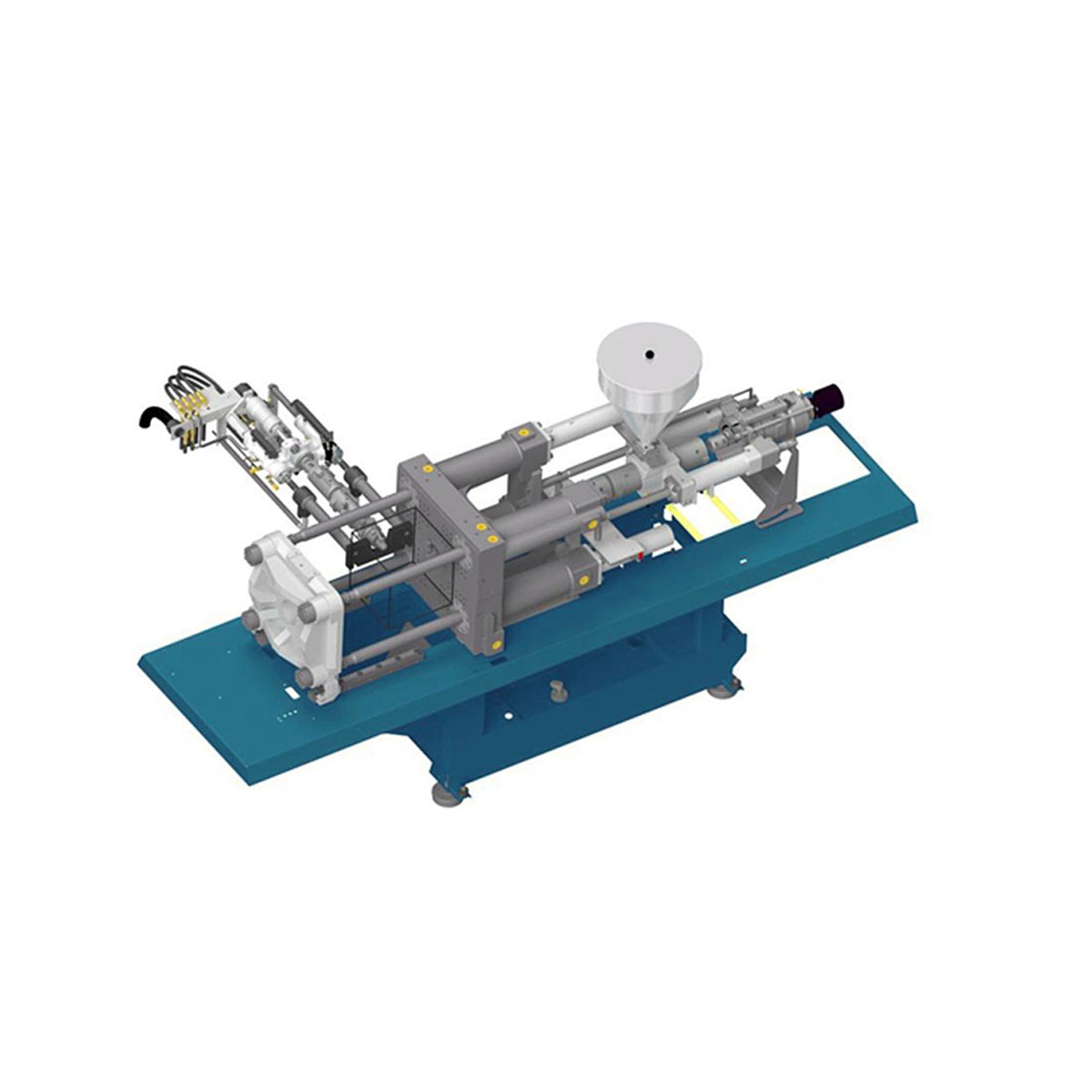

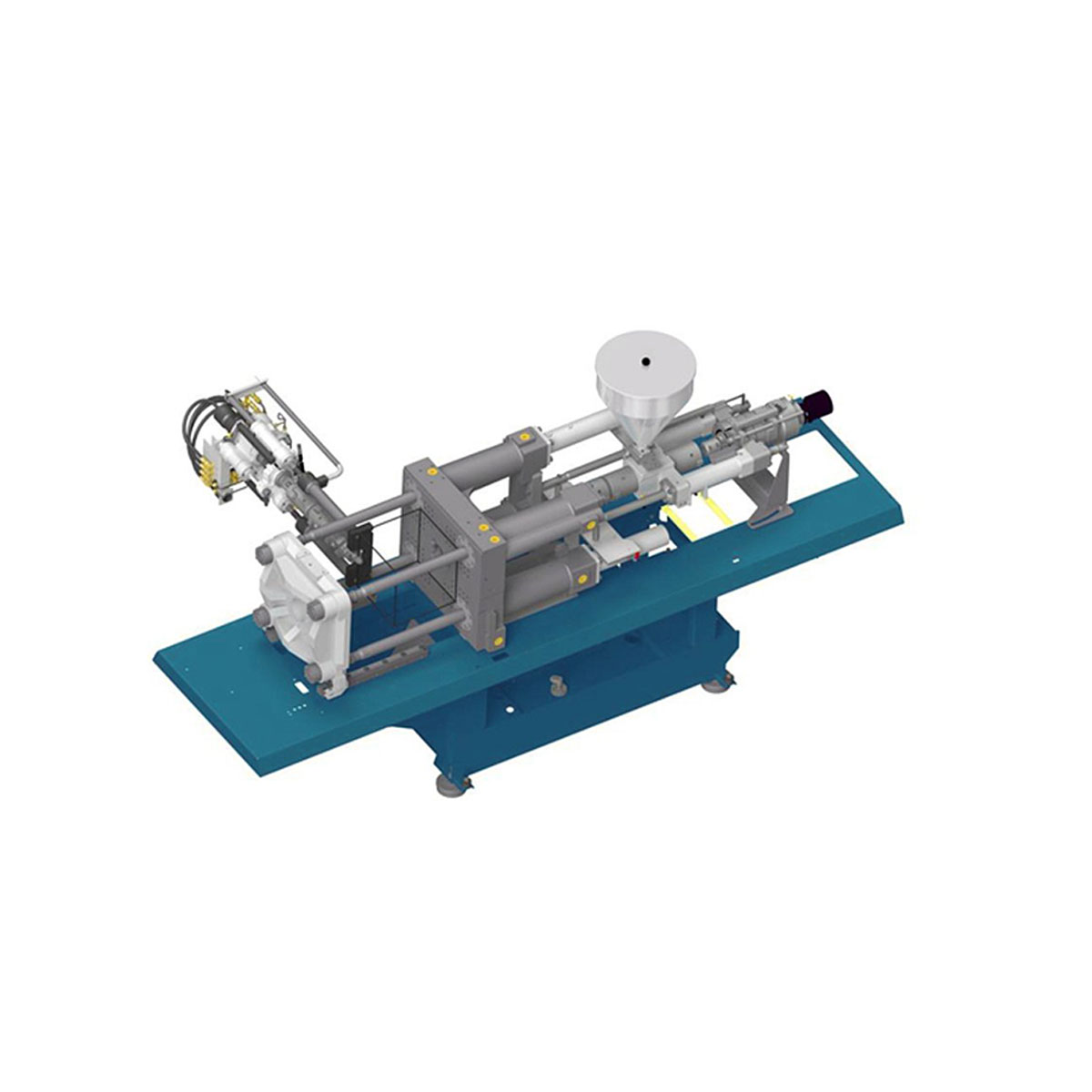

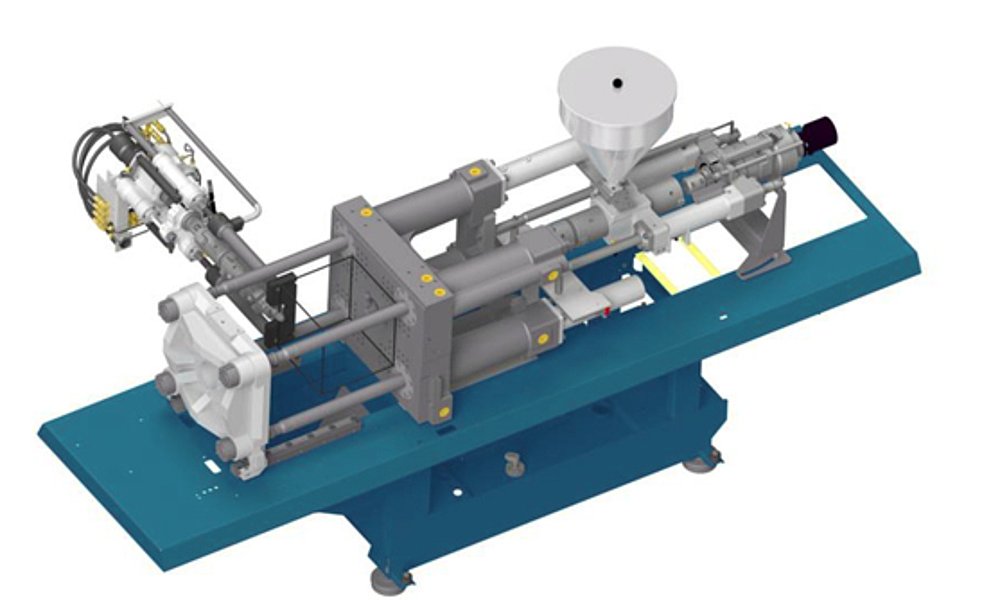

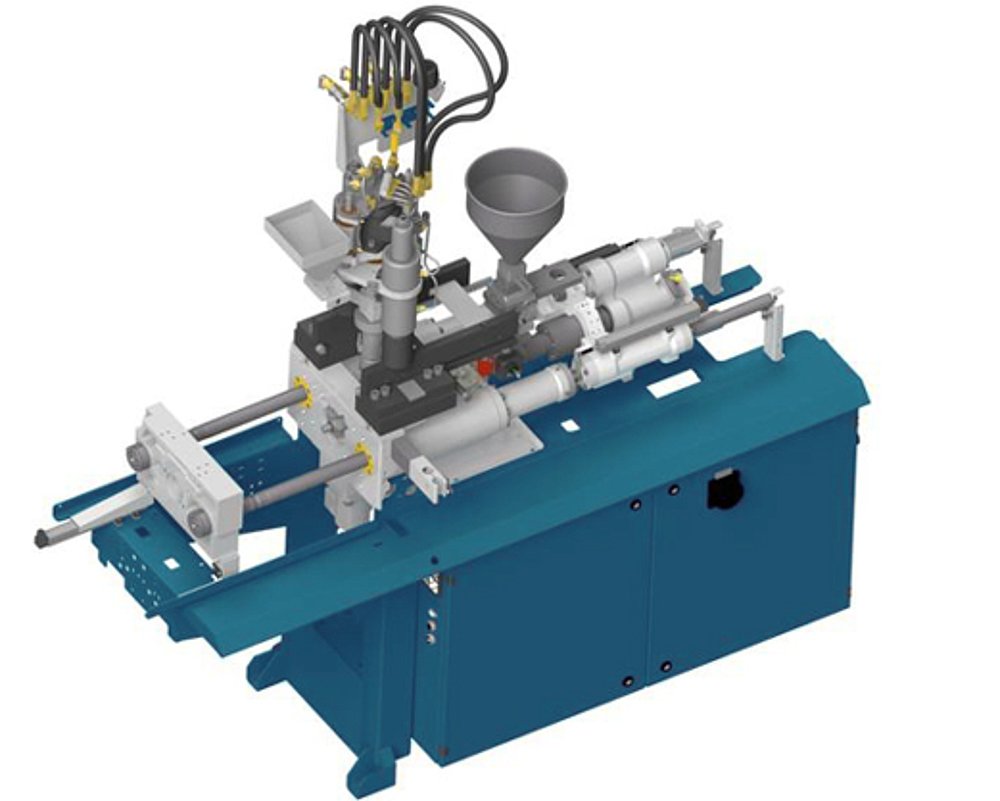

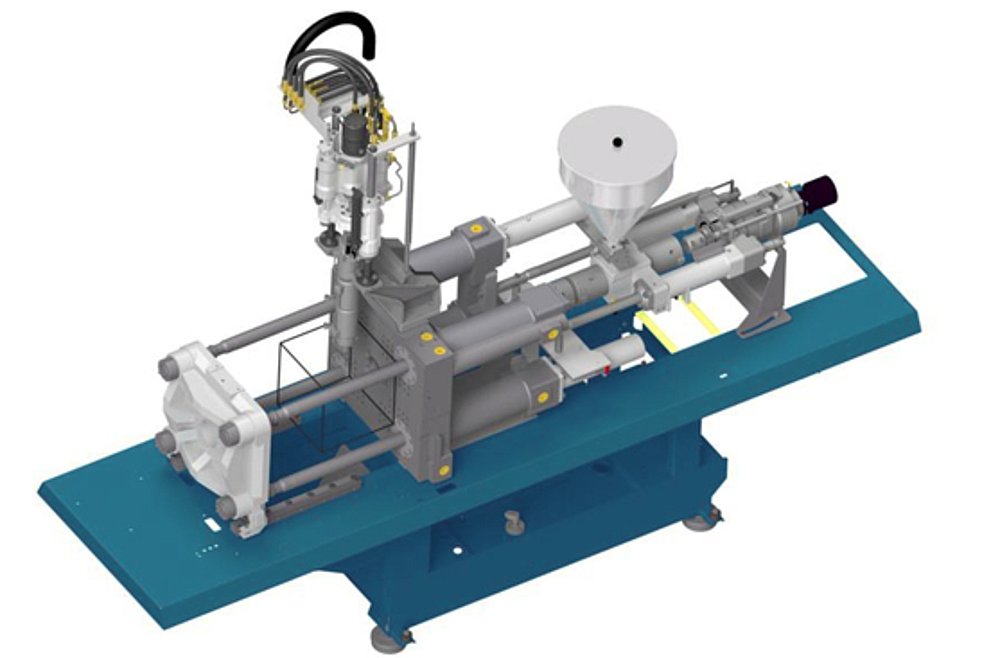

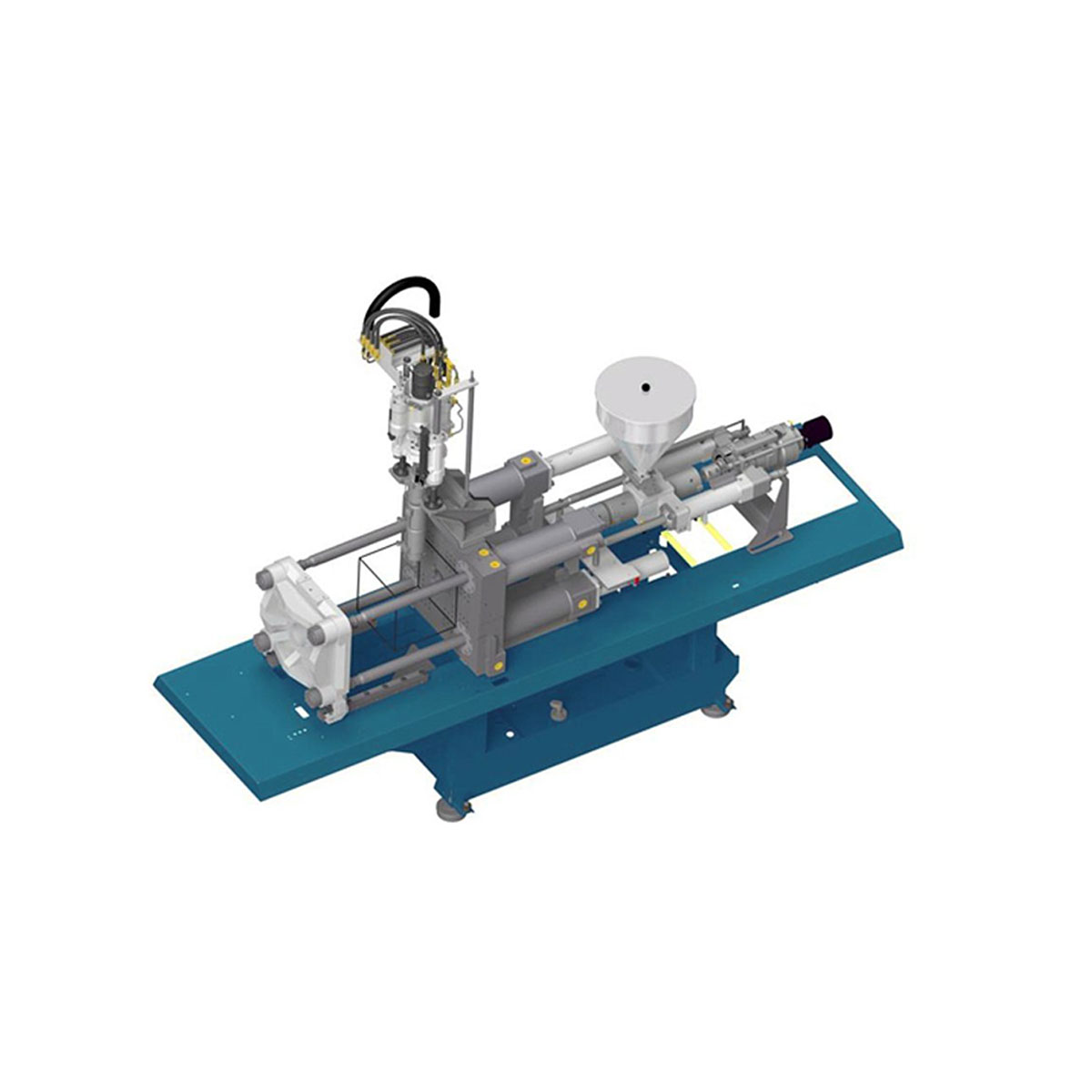

The BOY 2C M can be installed vertically or laterally on horizontal or vertical machines. On overmoulding machines (VV/VH), it can be positioned at the rear for optimal ergonomics and accessibility. An optional monitor connection on the main machine allows easy control and operation.
Technical performance & ergonomic operation
With screw diameters from 28 to 38 mm, a maximum stroke volume of 141.8 cm³ and injection pressures up to 2800 bar, the BOY 2C M meets the highest technical standards. It upgrades your machine with enhanced precision, efficiency, integration, and reliable plastics processing.
Technical data
- Screw Diameter:
28, 32, 38 mm - Max. Stroke Volume:
141.8 cm³ (theoretical) - Max. Injection Flow:
155.0 g/s (theoretical) - Max. Spec. Injection Pressure:
2800 bar
