BOY 2C XS / 2C S – Add-on Injection Unit for Efficient Two-Component Moulding
Flexible System for Precise Plastics Processing

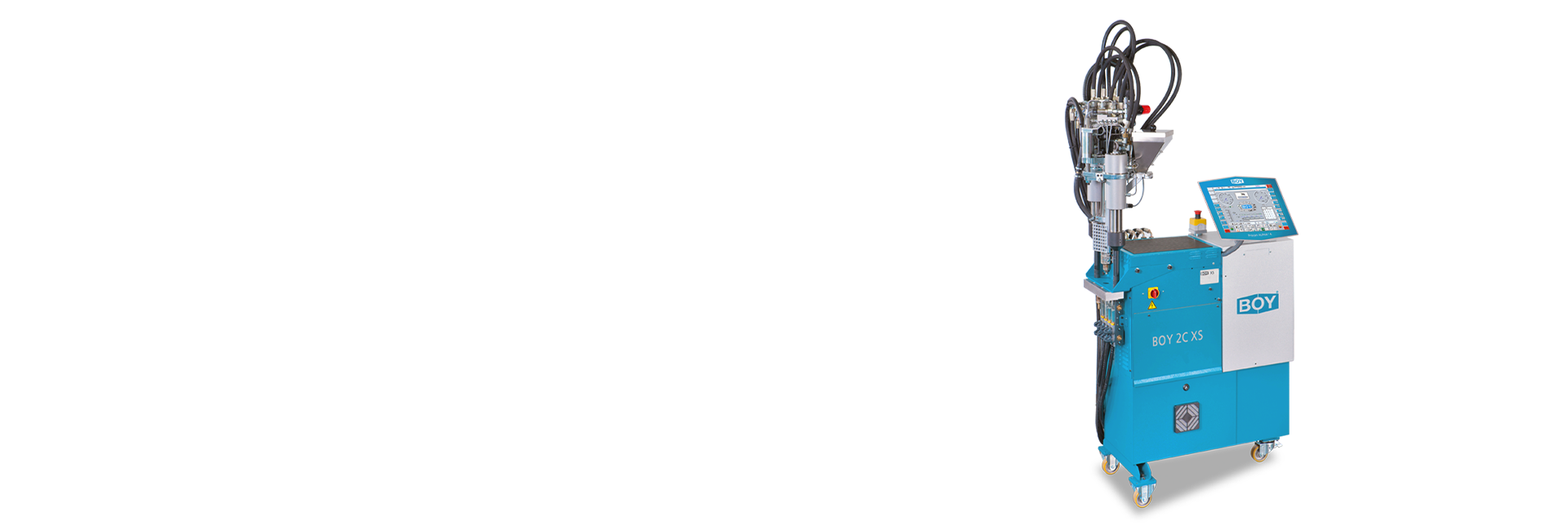

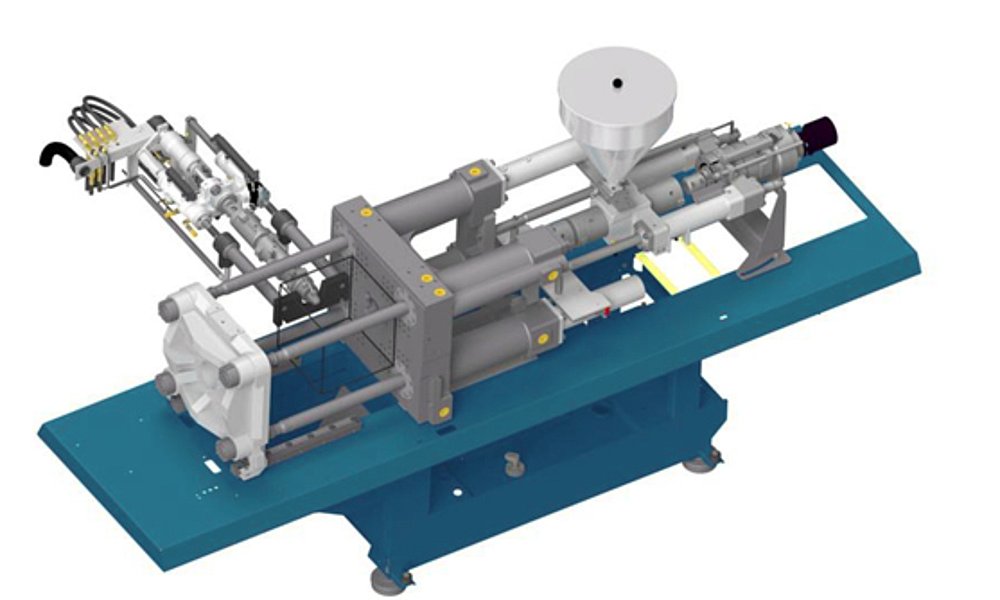

The BOY 2C XS / 2C S is a compact add-on unit for injection moulding machines, based on the ultra-small BOY XS, and equipped with its own hydraulic drive and control system. With plasticizing volumes of up to 76.5 cm³, it opens up new possibilities for micro injection moulding and fine two-component applications.
Mobile & Versatile in Use

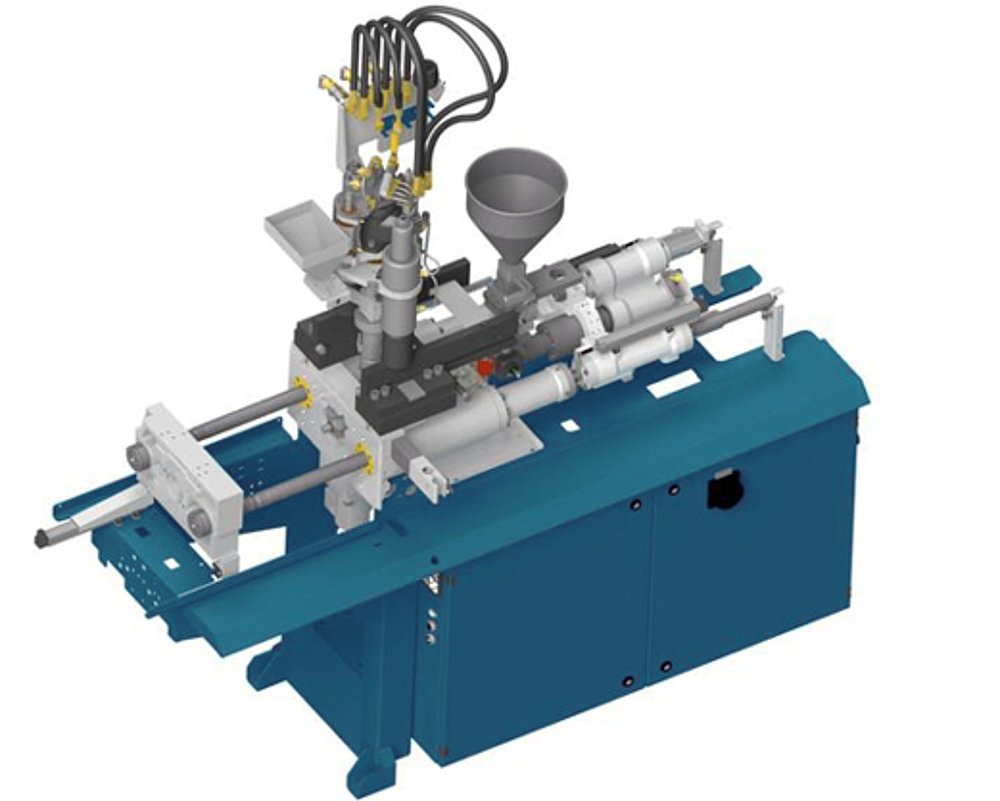

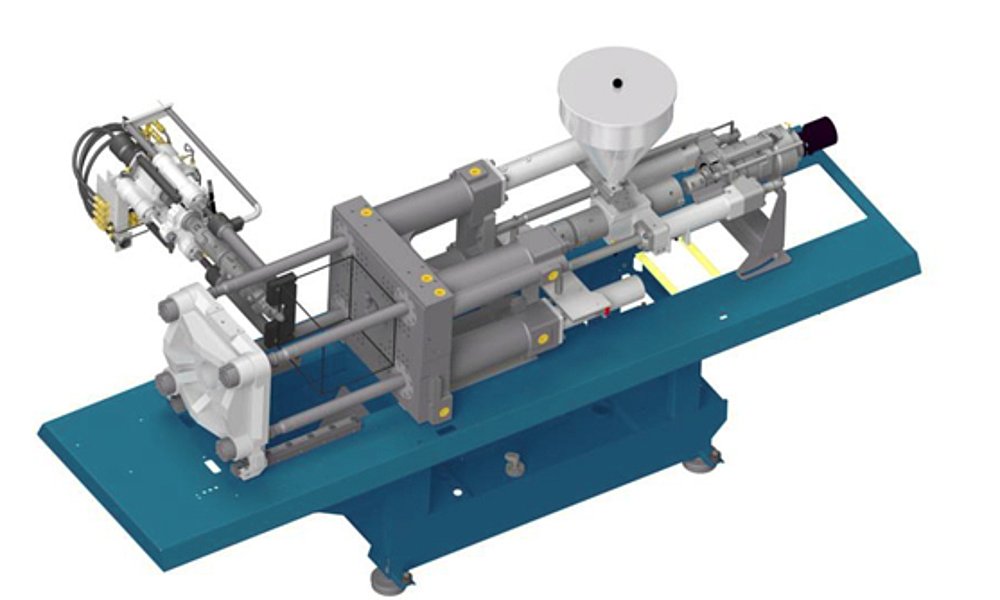

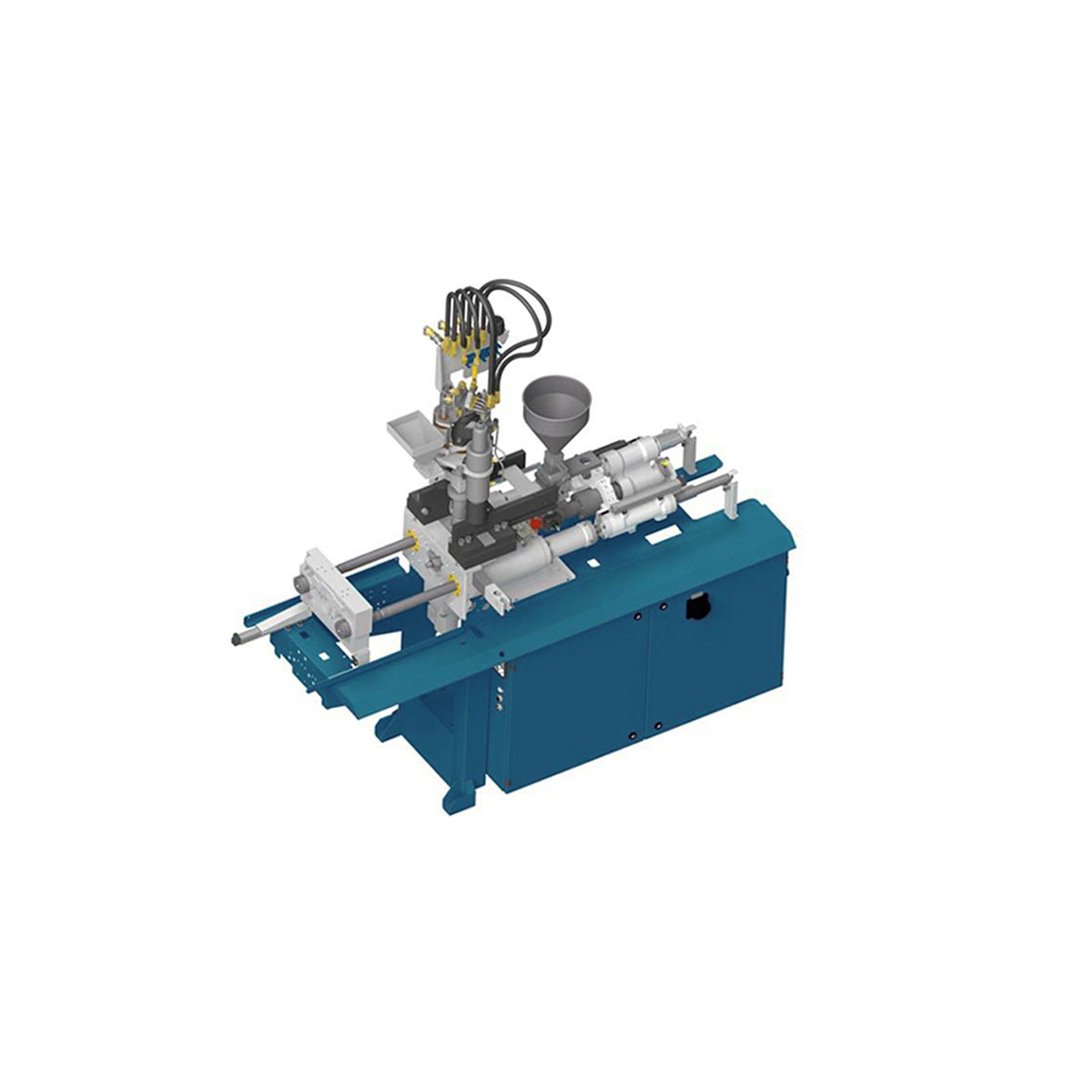

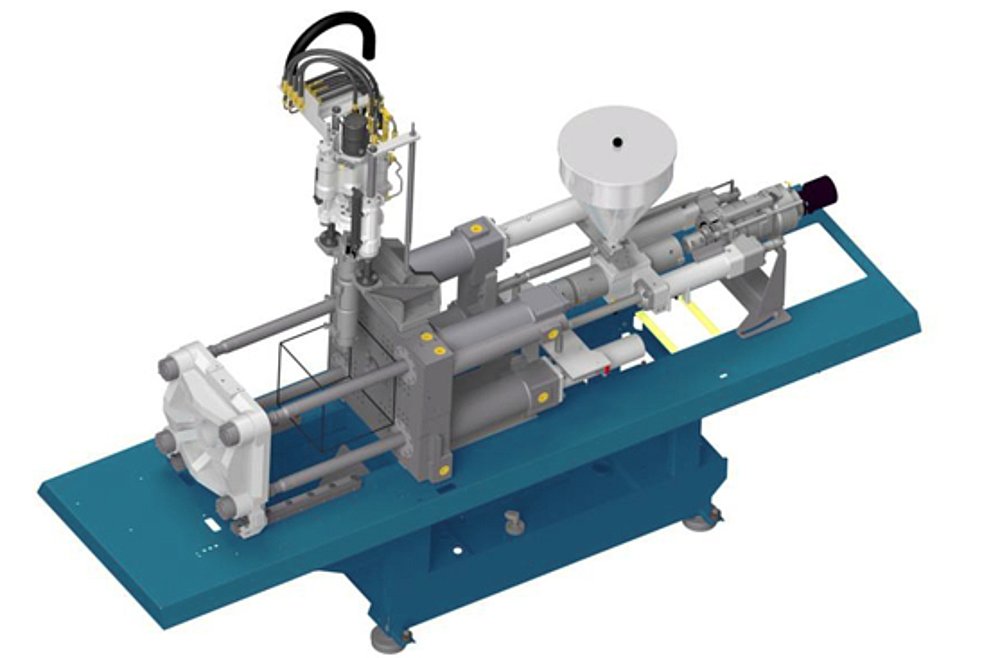

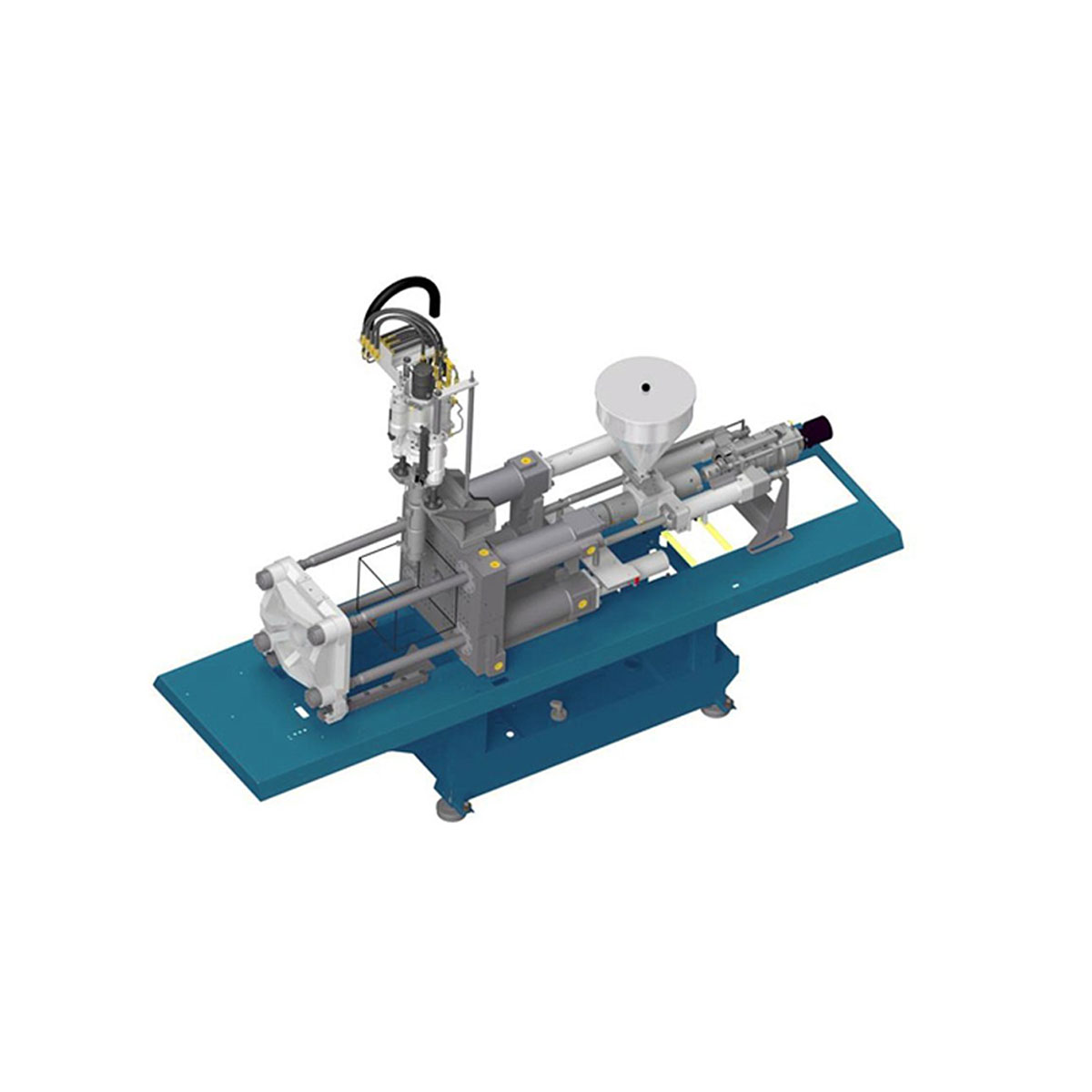

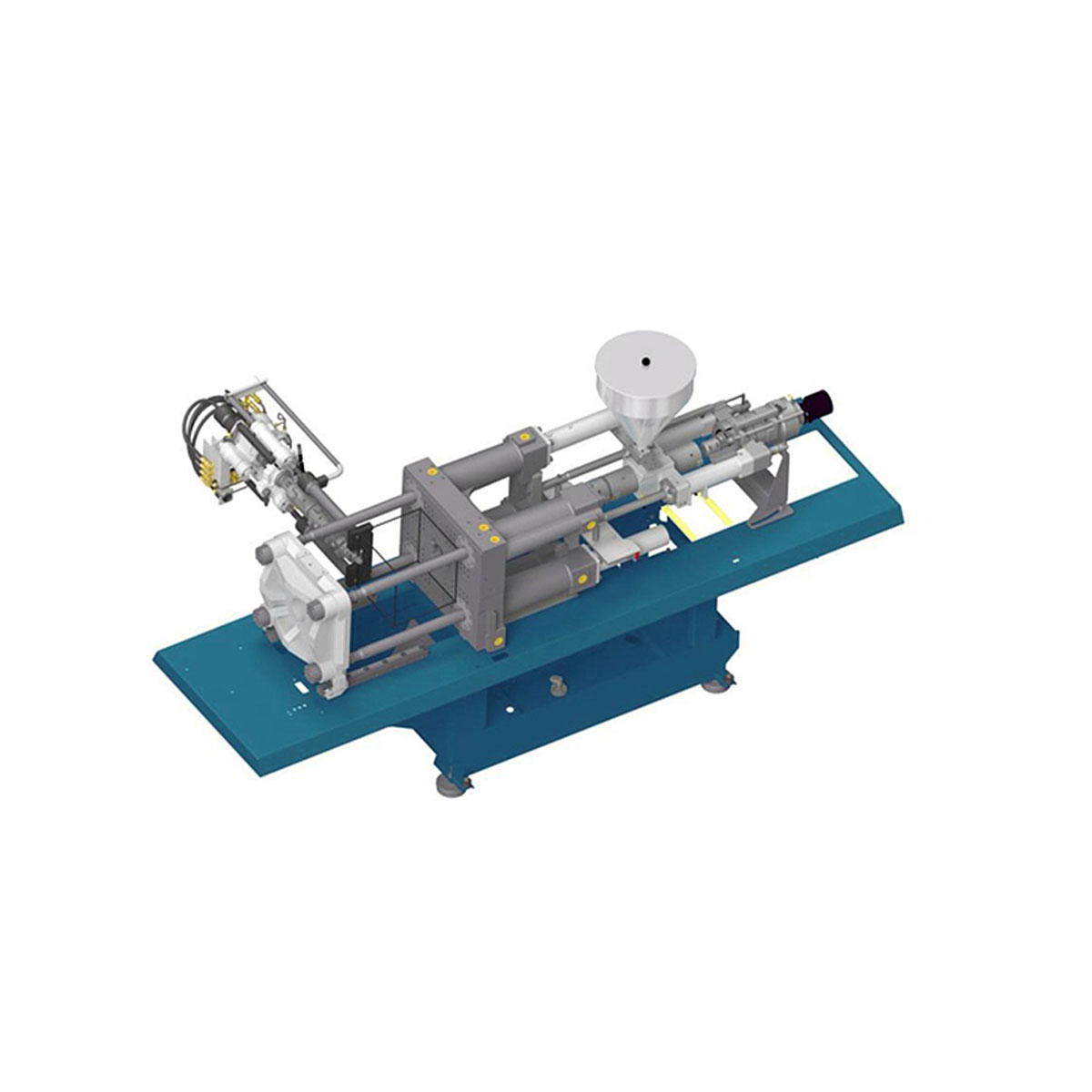

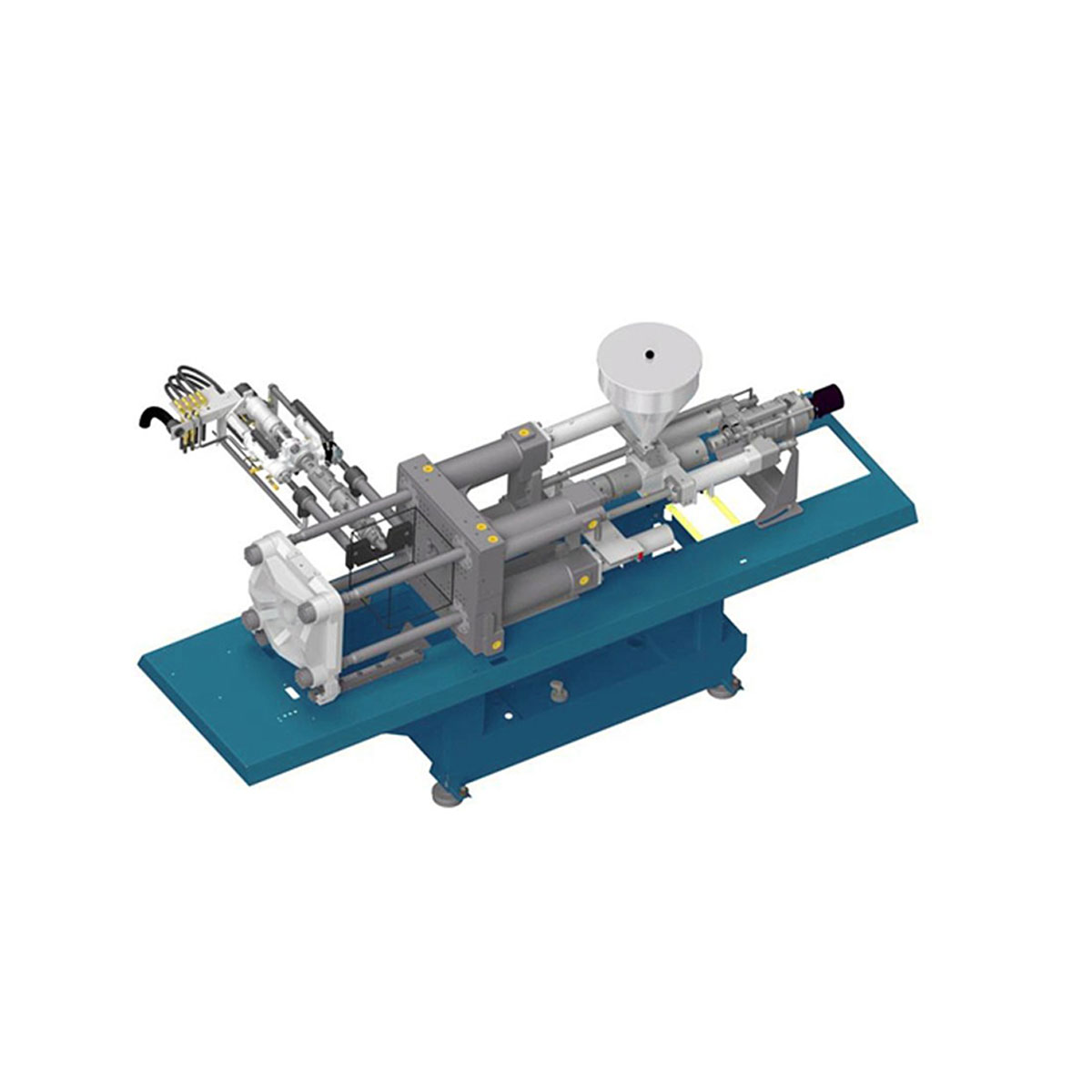

The unit can be positioned next to the injection moulding machine and even used as a transportable system. It can be mounted horizontally or vertically, laterally, or at the rear of insert moulding machines (VV / VH) – ideal for modular plastics processing, injection moulding automation, and precise two-component processes.
Technical data
- Screw Diameter:
12, 14, 16, 18, 22, 24, 28, 32 mm - Max. Stroke Volume:
76.5 cm³ (theoretisch) - Max. Injection Flow:
66.6 g/s (theoretisch) - Max. Spec. Injection Pressure:
3128 bar
