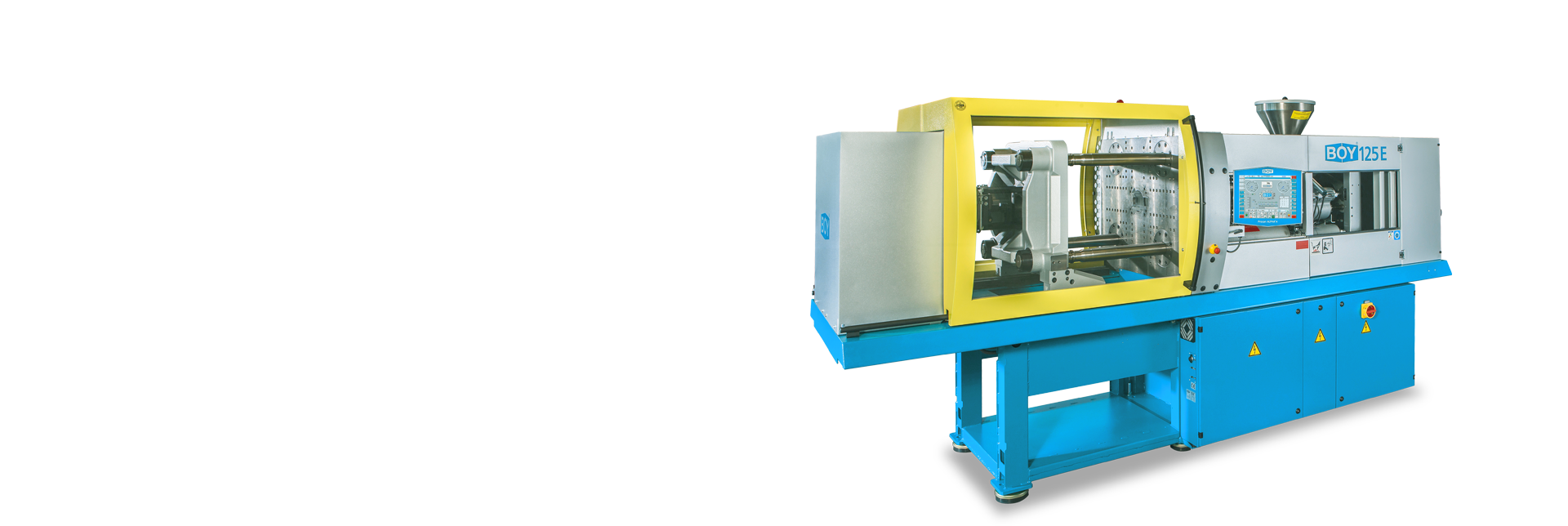

BOY 125 E – Powerful Injection Moulding Machine with 1,250 kN
High performance and automation in one model
The BOY 125 E is the flagship of the BOY portfolio. With 1,250 kN clamping force, extended tie bar (470 mm) and platen distance (825 mm), and a user-friendly four-tie bar clamping system, it delivers high-performance injection moulding with short set-up times.
Compact, precise and efficient
Despite its power, the BOY 125 E remains compact with a footprint of only 5.22 m². Its freely accessible design, two-part protective cover, and optimised mould access ensure smooth operation. The machine combines precision, cost-effectiveness, and flexible production for demanding injection moulding applications.
Highlights
- Injection moulding machine
- top-model from Dr. Boy
- 1250 kN clamping force

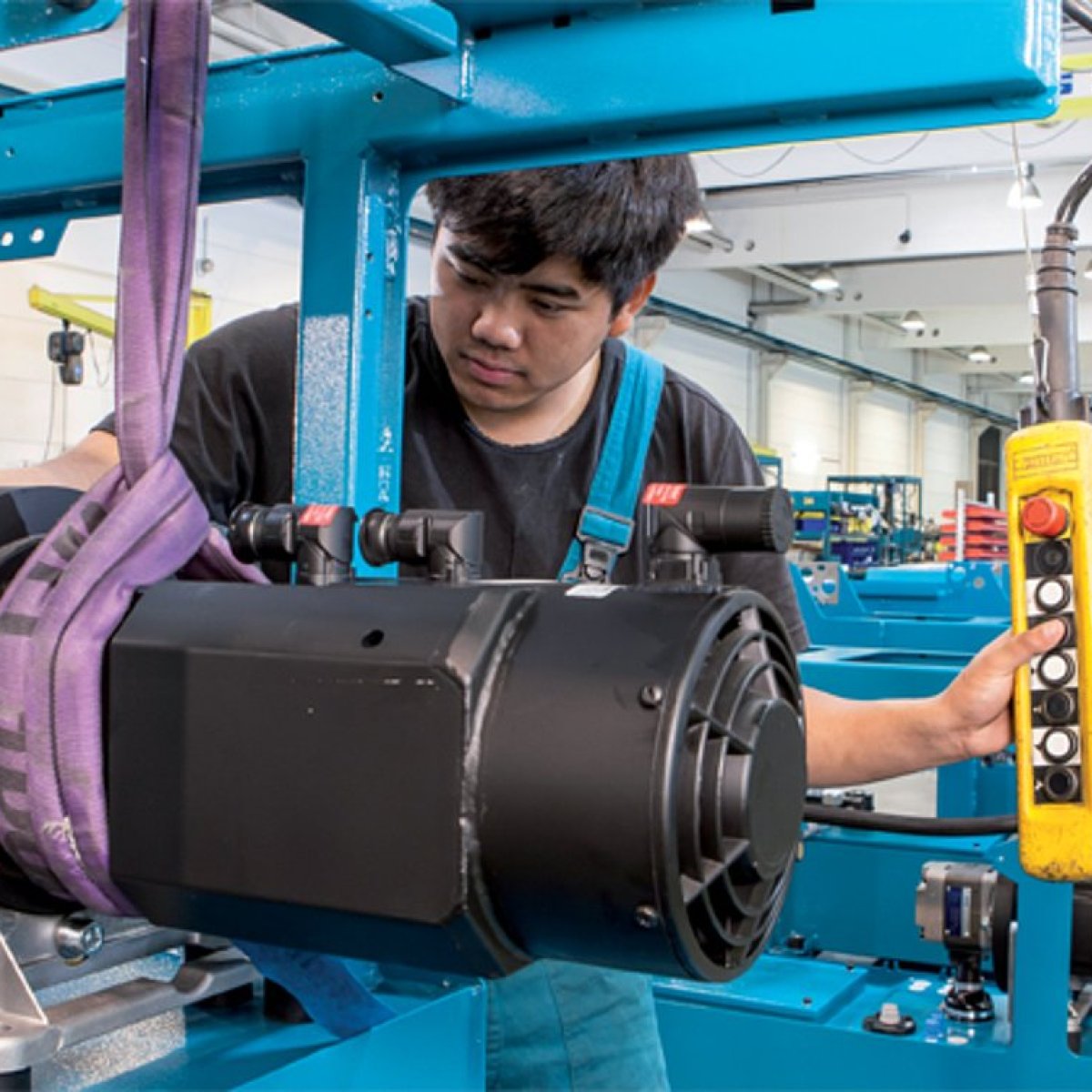

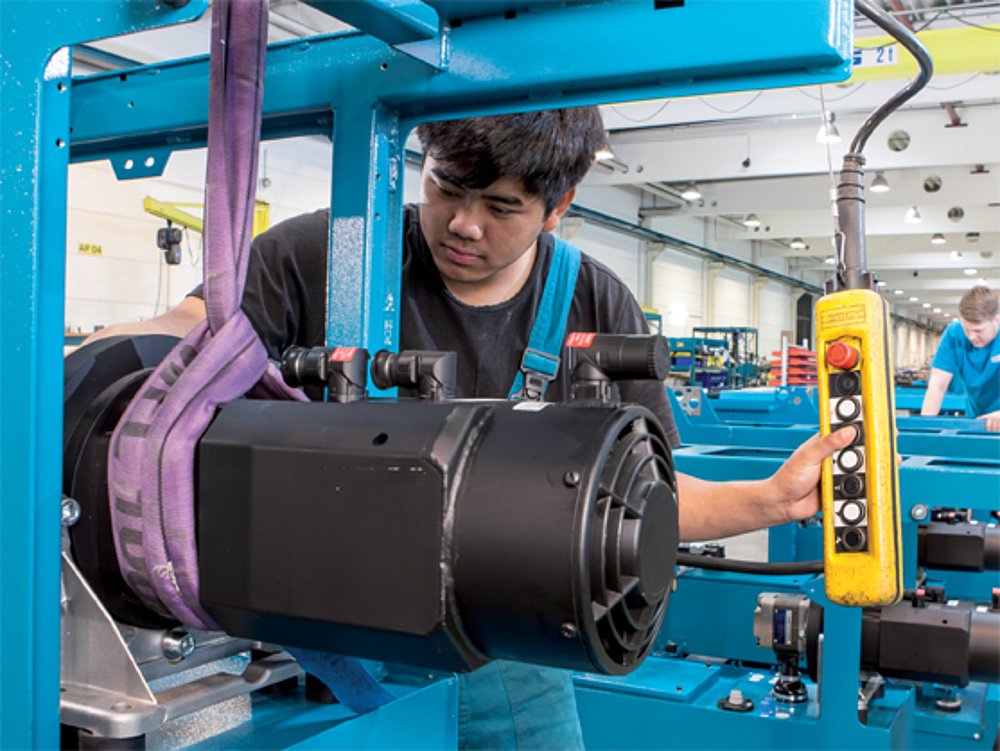

- Servo-Drive
- moveable injection unit

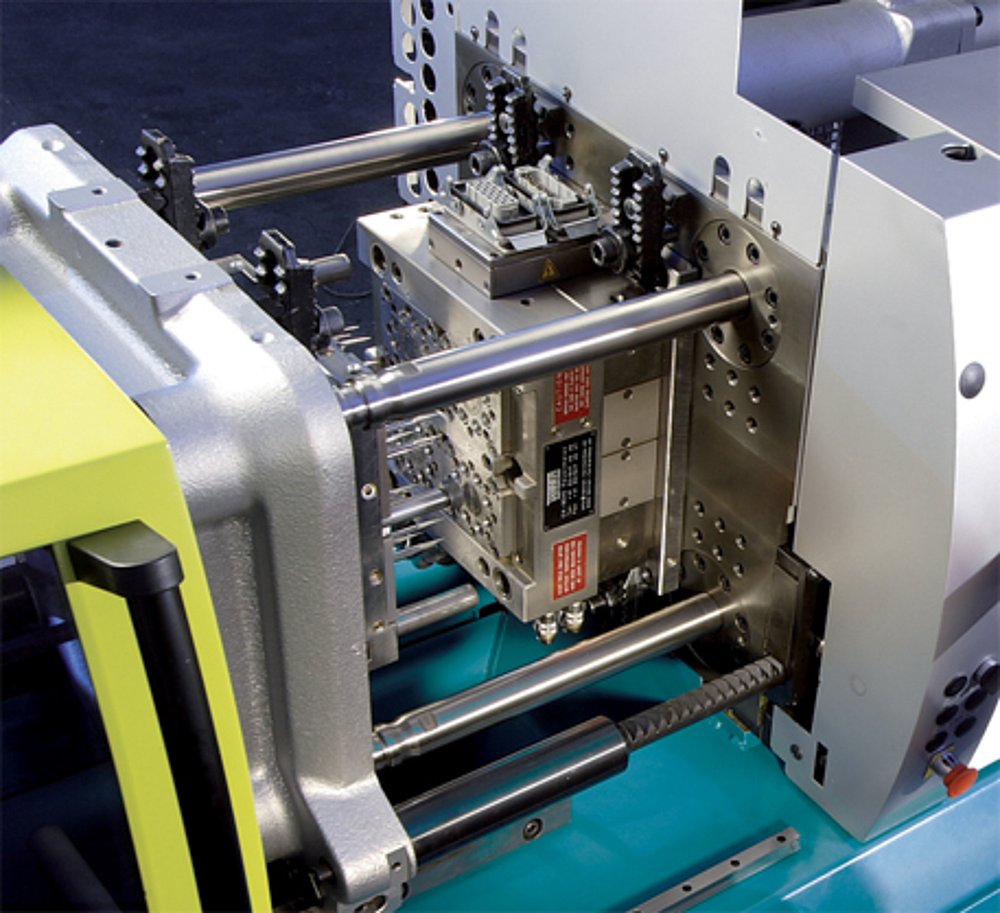

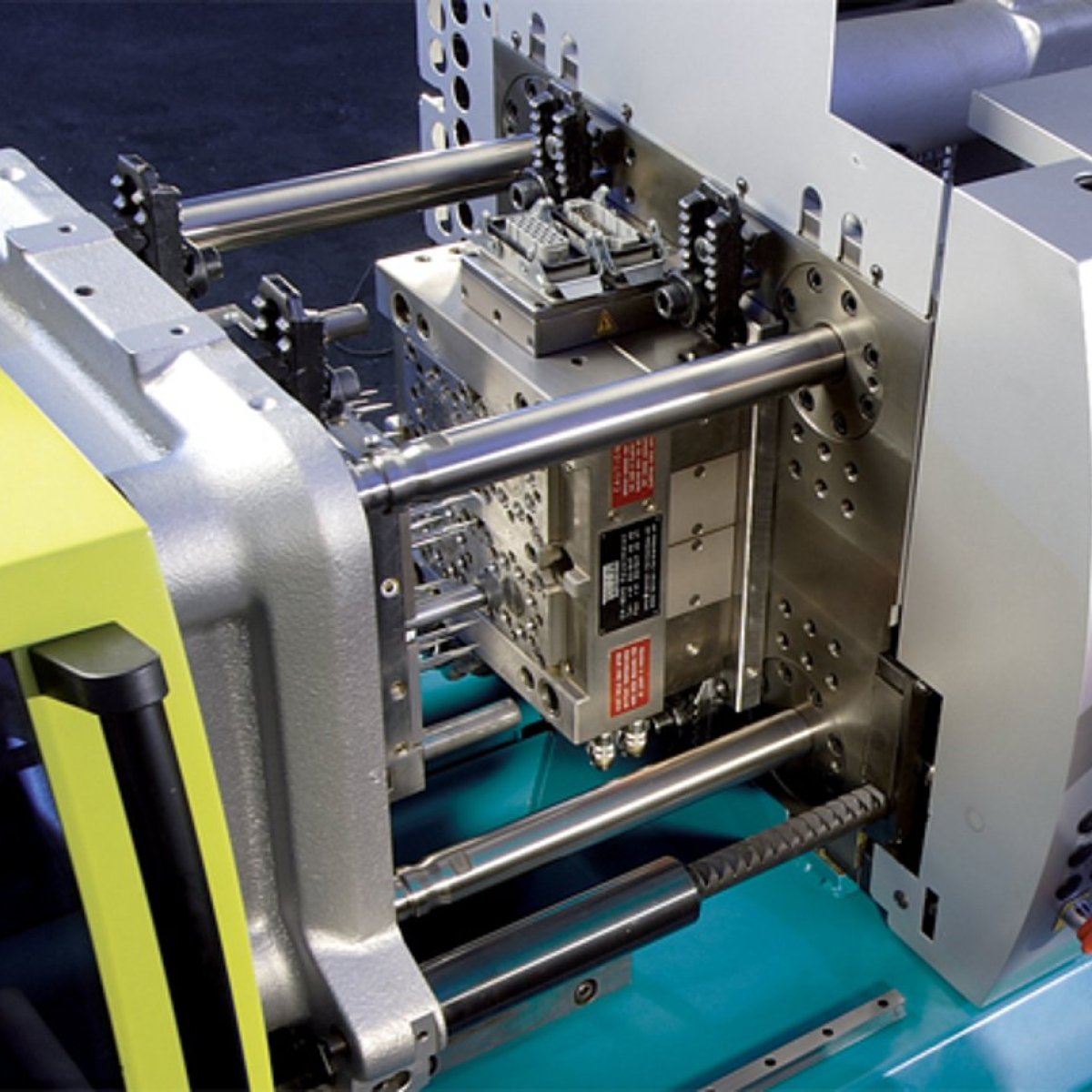

- Two-Platen-clamping unit
- maximum efficiency
- maximum quality
- lower energy demand
- maximum precision
- flexible use of moulds
- comfortable operation
- Procan ALPHA 6 control

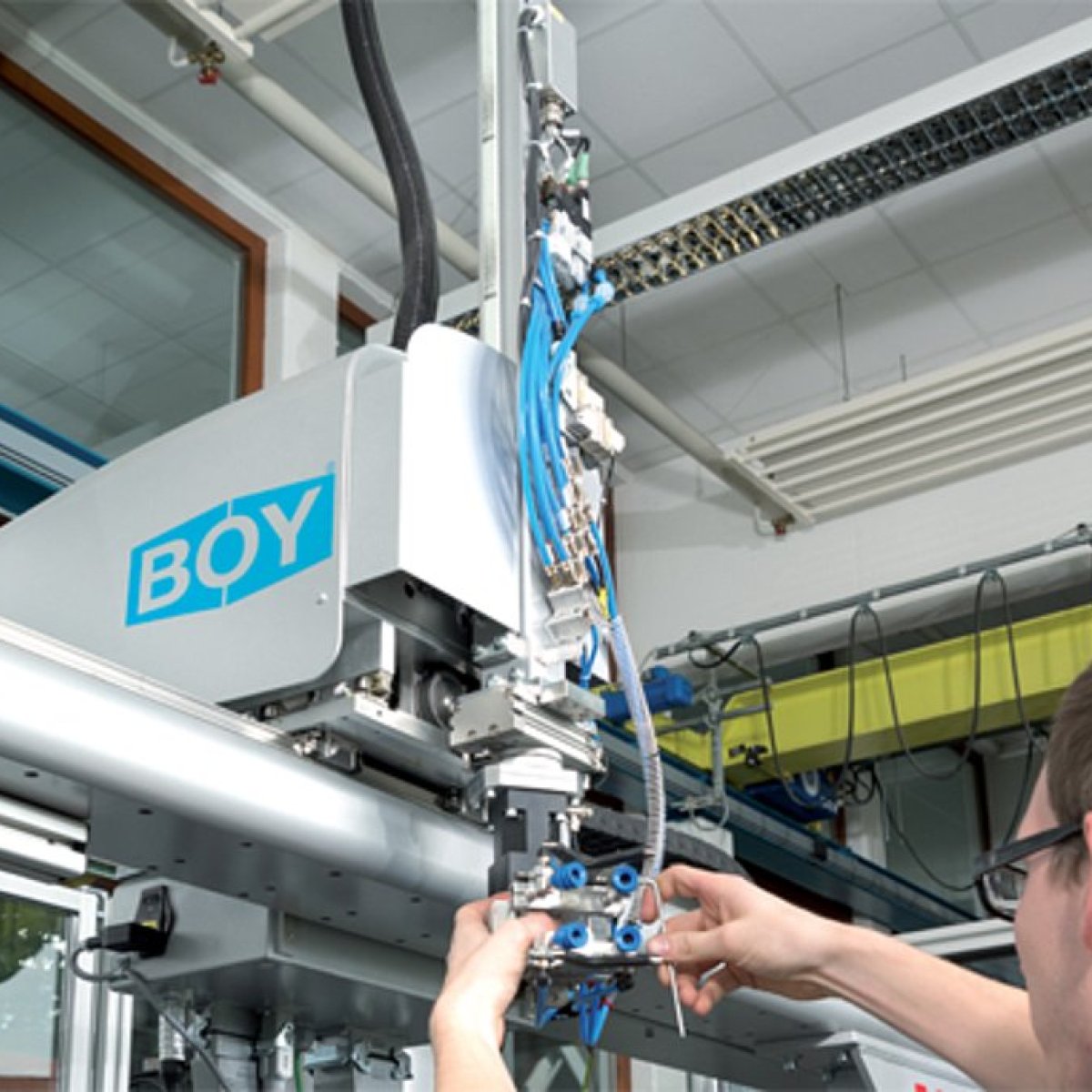

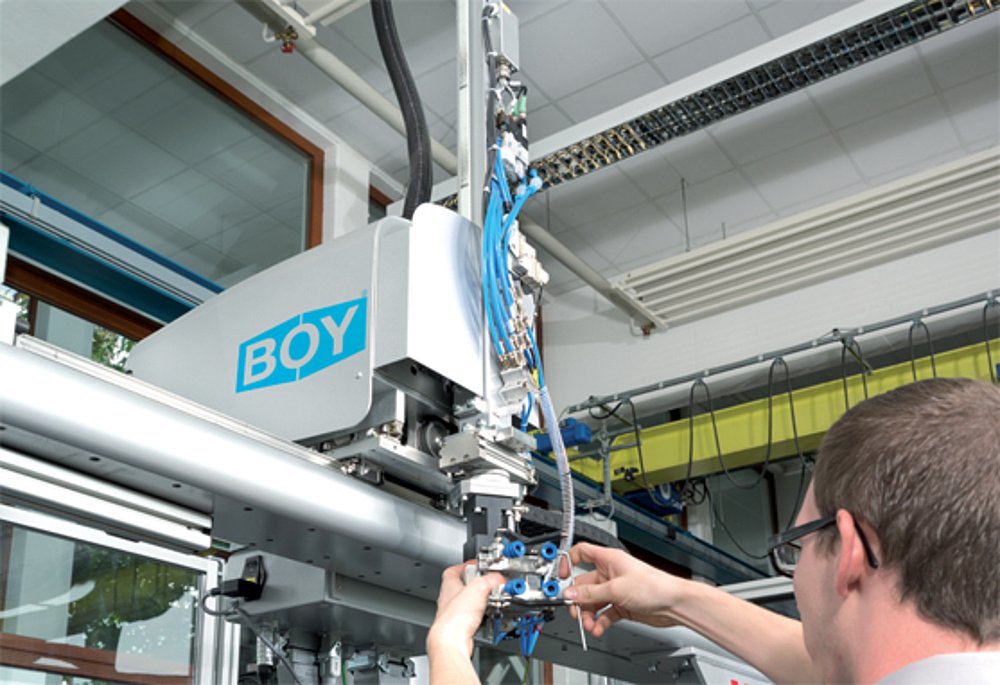

- easy automation
- worldwide service
Technical data
- Euromap Size:
1250-215 / 1250-420 - Screw Diameter:
28, 32, 36, 38, 42, 48, 52 mm - Max. Stroke Volume:
339.8 cm³ (theoretical) - Max. Injection Flow:
407.3 g/s (theoretical) - Max. Spec. Injection Pressure:
2798 bar - Max. Daylight Between Platen:
825 mm - Max. Opening Stroke:
525 mm - Distance Between Tie Bars:
470 x 430
