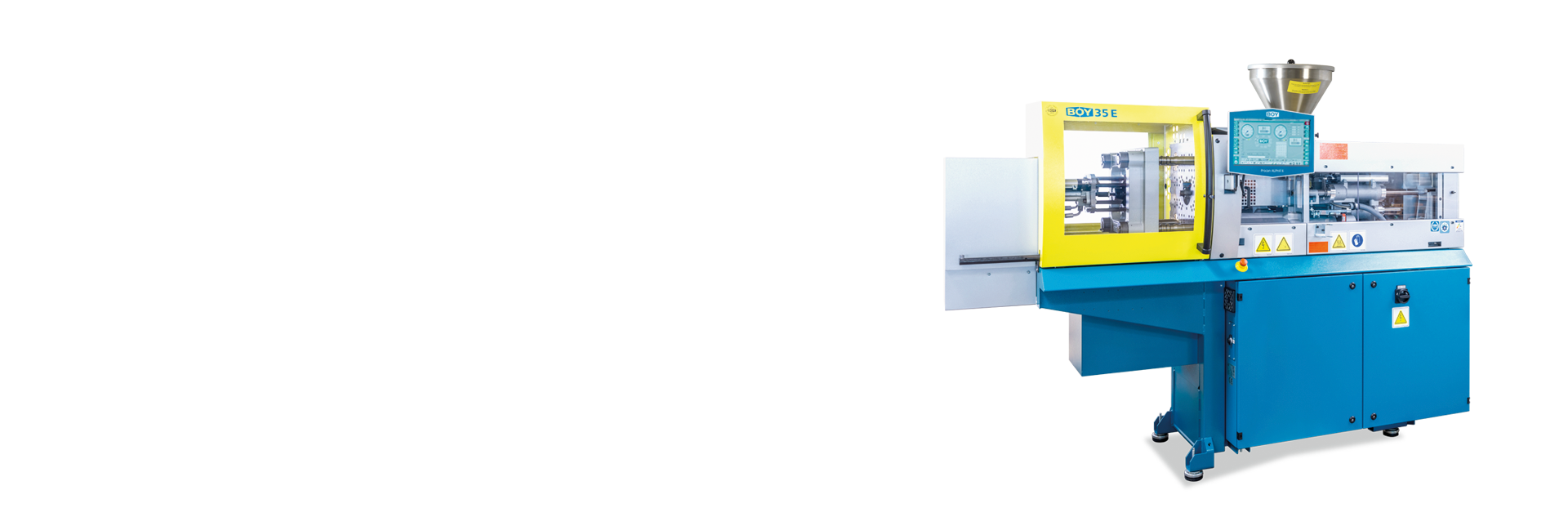

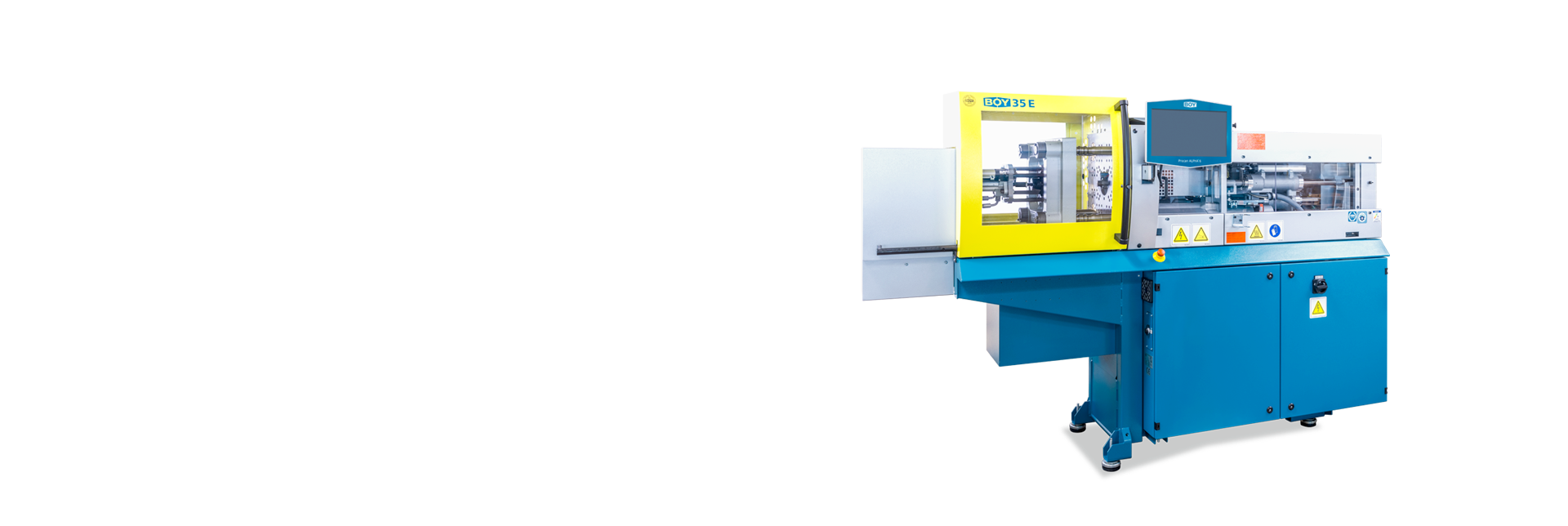

BOY 35 E – Compact Injection Moulding Machine for Precise Plastics Processing
Precision meets flexible automation
The BOY 35 E delivers outstanding precision as a hydraulic injection moulding machine with a robust two-platen clamping system and swing-out injection unit. Its rigid construction and flexible configuration create optimal conditions for maximum production quality within narrow tolerance ranges.
Compact, efficient, and versatile configuration
With a footprint of less than 2 m², the BOY 35 E is one of the most compact machines in its class, ideal for modern production environments. Its attractive price/performance ratio, extremely low machine hourly rates, and a wide selection of six injection units and six screw diameters make it perfect for automated injection moulding and demanding plastics processing.
Highlights
- Injection moulding machine
- compact design
- only 2 m² footprint
- 350 kN clamping force

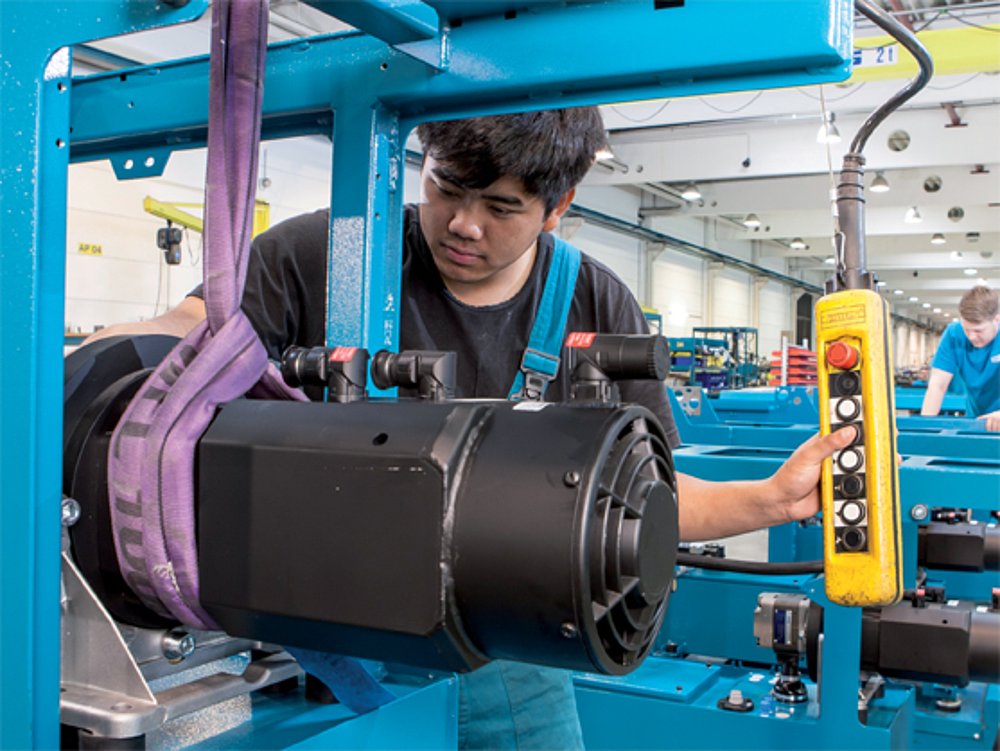

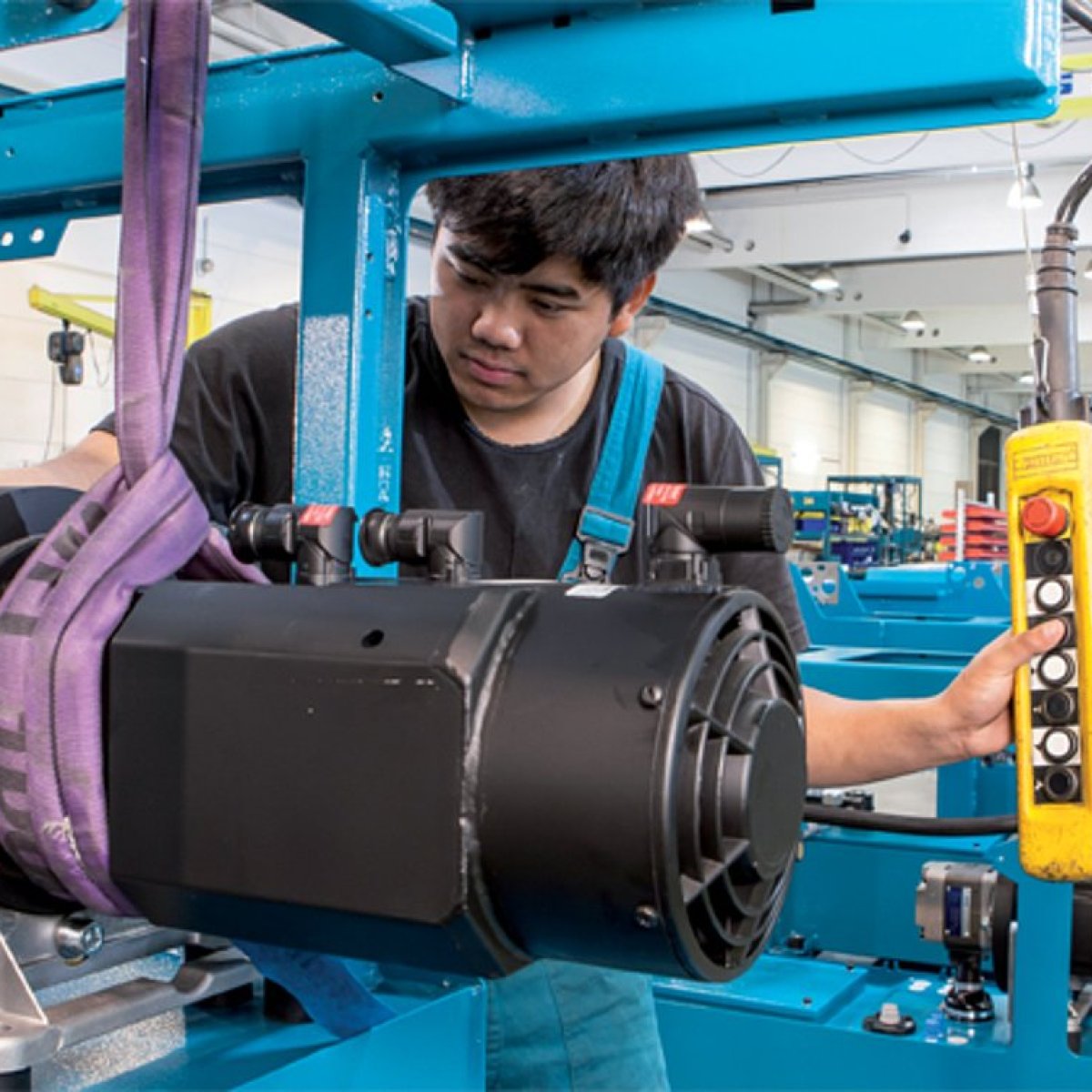

- Servo-Drive
- two-Platen-clamping unit
- maximum efficiency
- maximum quality
- lower energy demand
- maximum precision
- flexible use of moulds
- comfortable operation
- Procan ALPHA 6 control

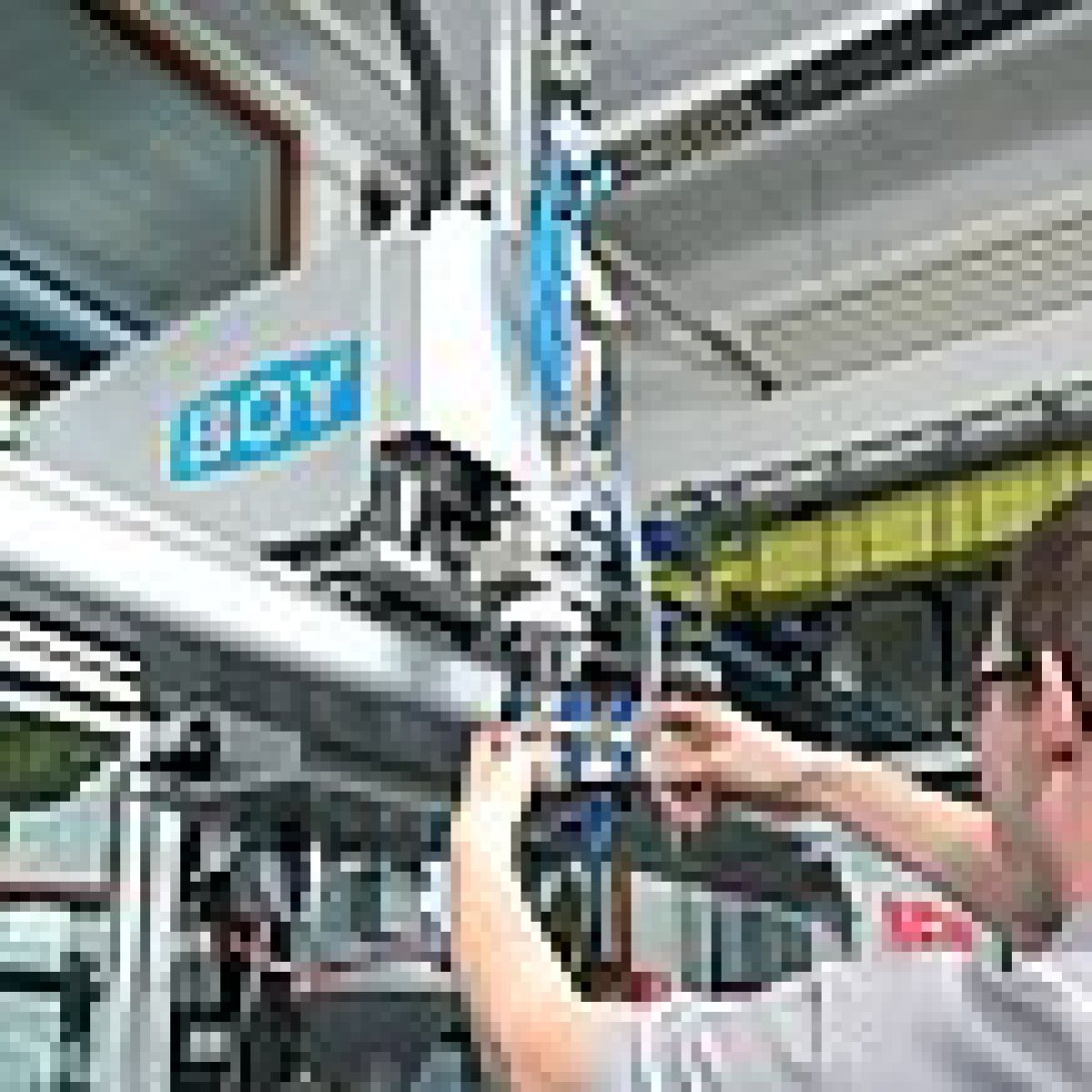

- easy automation
- worldwide service
Technical data
- Euromap Size:
350-16 / 350-45 / 350-56 / 350-81 / 350-96 - Screw Diameter:
14, 18, 22, 24, 28, 32 - Max. Stroke Volume:
76.5 cm³ (theoretical) - Max. Injection Flow:
122.2 g/s (theoretical) - Max. Spec. Injection Pressure:
2739 bar - Max. Daylight Between Platen:
500 mm - Max. Opening Stroke:
300 mm - Distance Between Tie Bars:
280 x 254 mm
