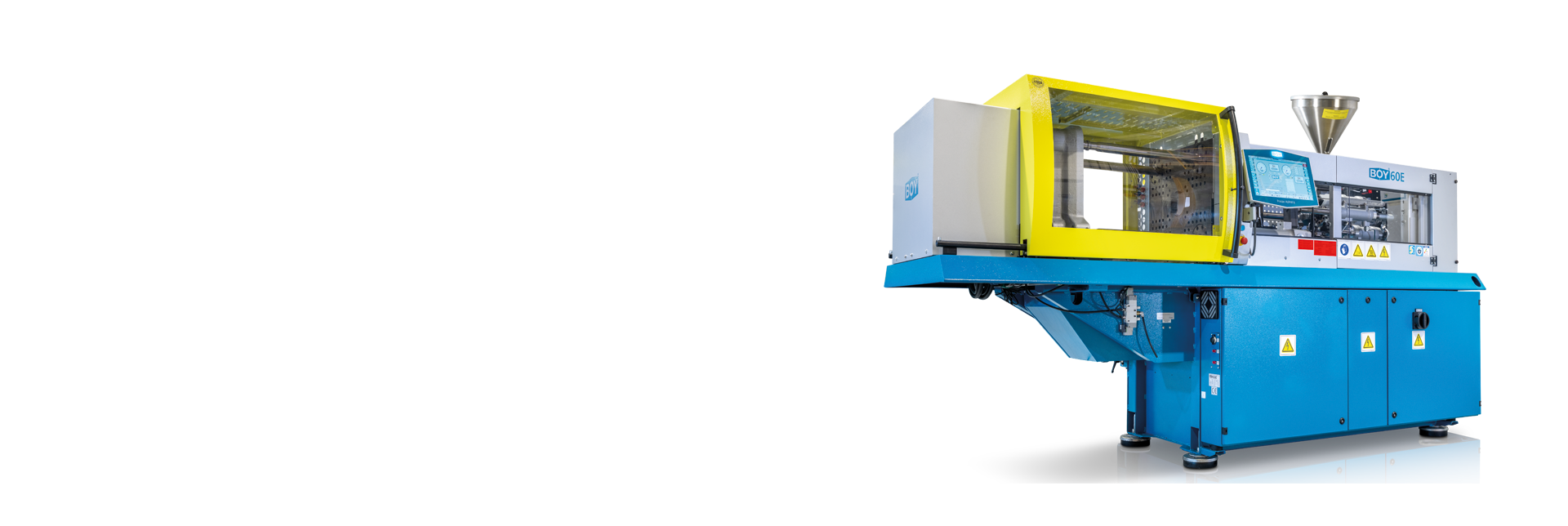

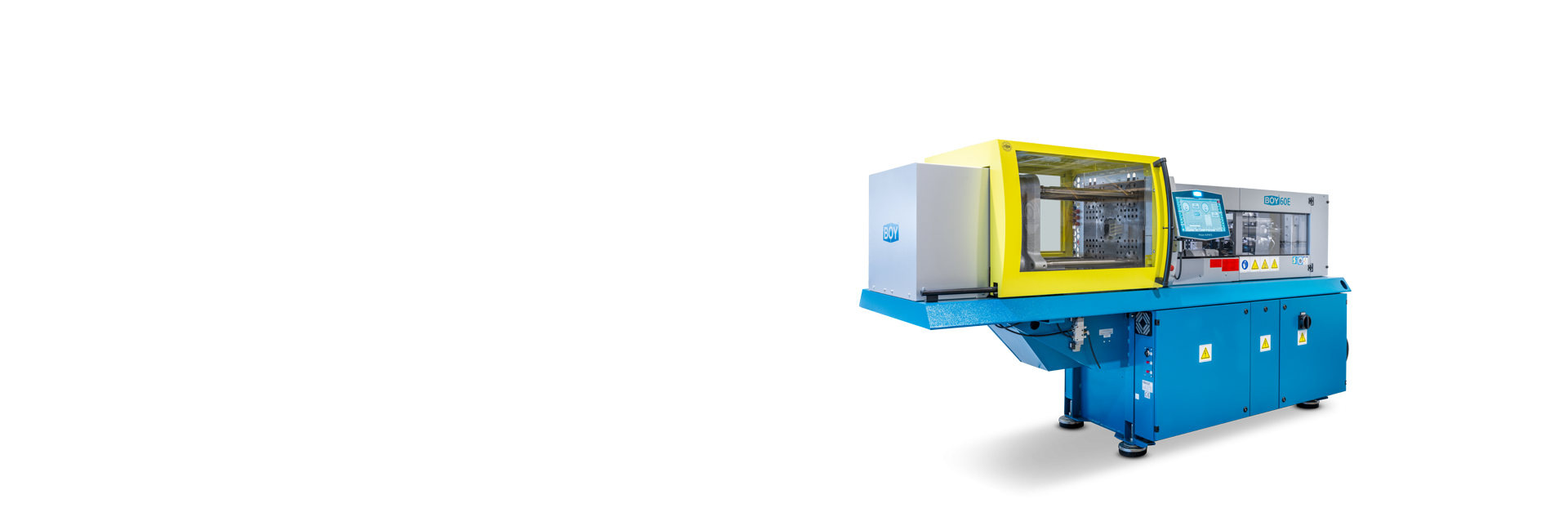

BOY 60 E – Compact Injection Moulding Machine for Precise, Automated Injection Moulding
Efficiency and precision with servo drive and Industry 4.0 readiness
The BOY 60 E is a top-performing injection moulding machine featuring 600 kN clamping force, a servo motor pump drive, and the Procan ALPHA 6 control system. Its energy-efficient design and robust two-platen clamping system make it perfect for demanding automated injection moulding processes, combining maximum performance with a compact footprint.Performance meets flexibility

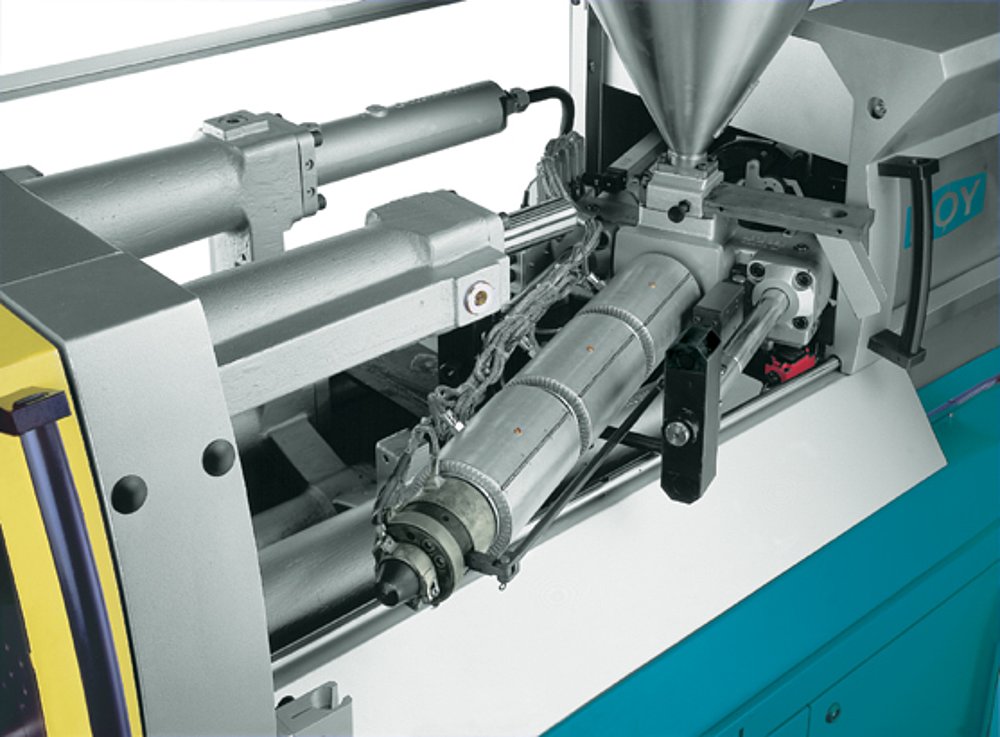

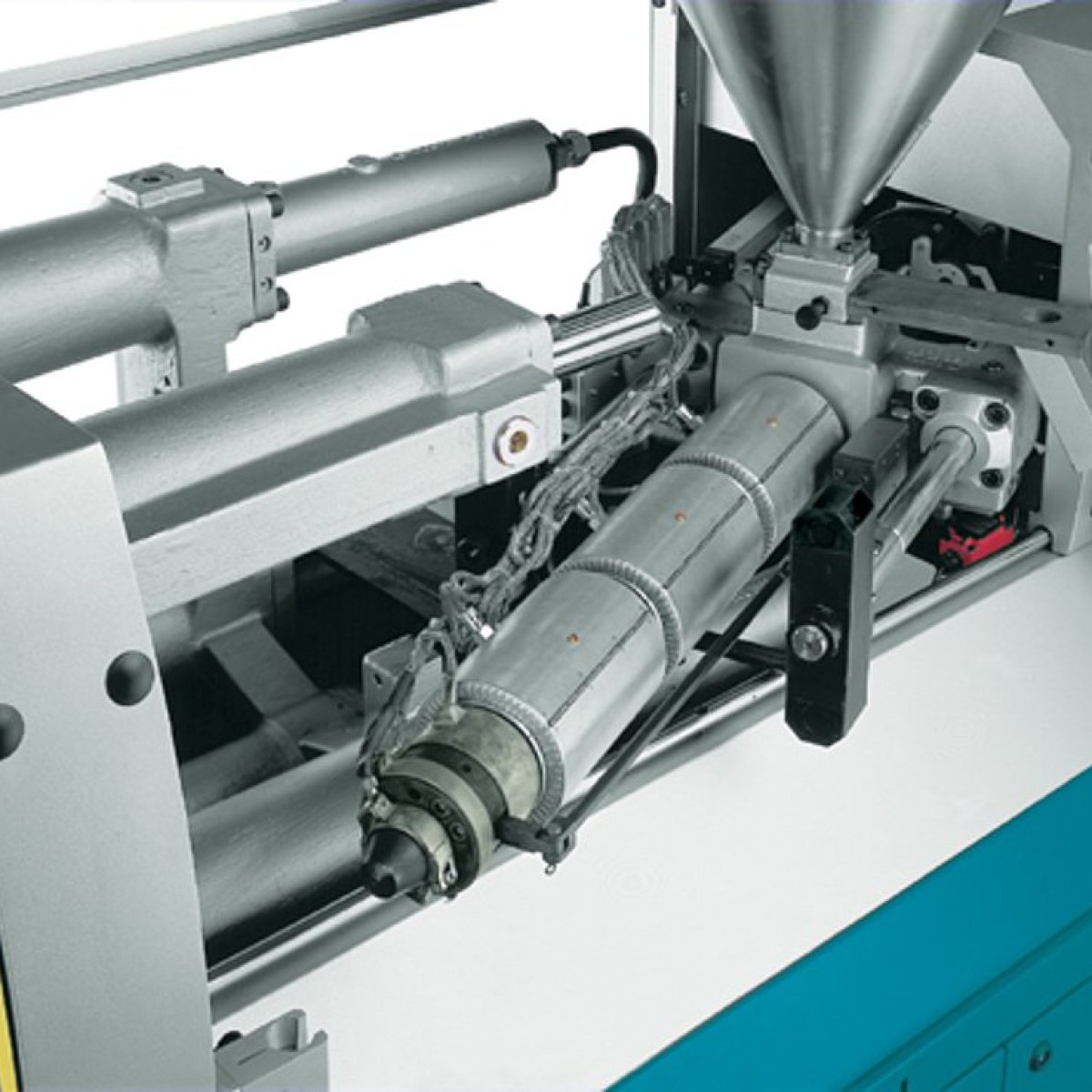

Despite its small footprint, the BOY 60 E delivers impressive dynamics. With screw diameters from 18 to 42 mm, a generous stroke volume of up to 173 cm³, and injection rates up to 236 g/s, it ensures high-quality results, consistent efficiency, and precise repeatability. This makes the BOY 60 E ideal for modern production environments requiring both performance and compact design.
Highlights
- Injection moulding machine
- compact design
- 600 kN clamping force

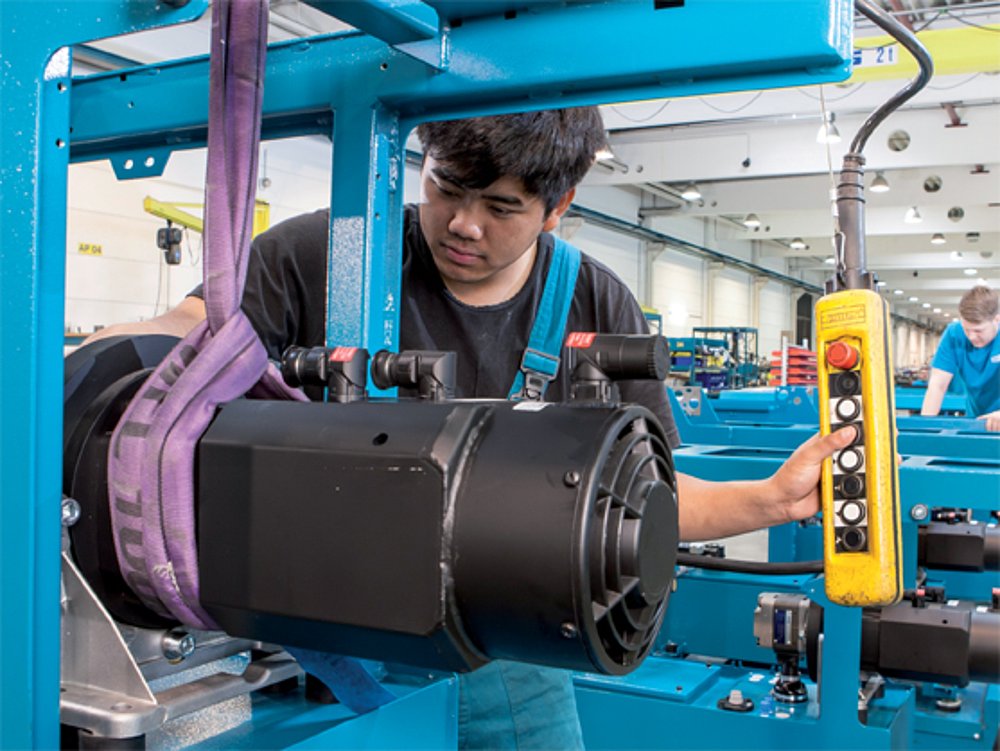

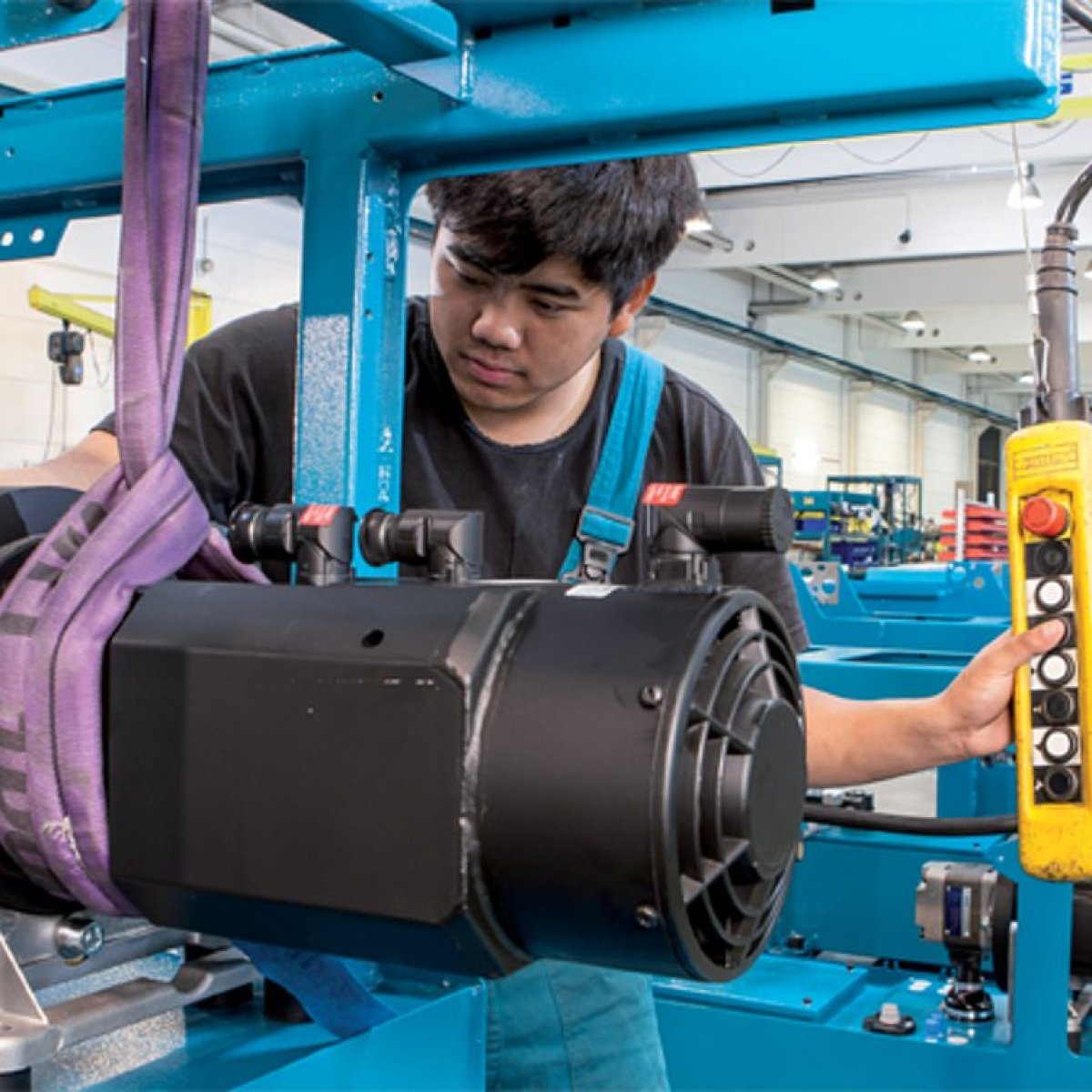

- Servo-Drive
- two-Platen-clamping unit
- maximum efficiency
- maximum quality
- lower energy demand
- maximum precision
- flexible use of moulds
- comfortable operation
- Procan ALPHA 6 control

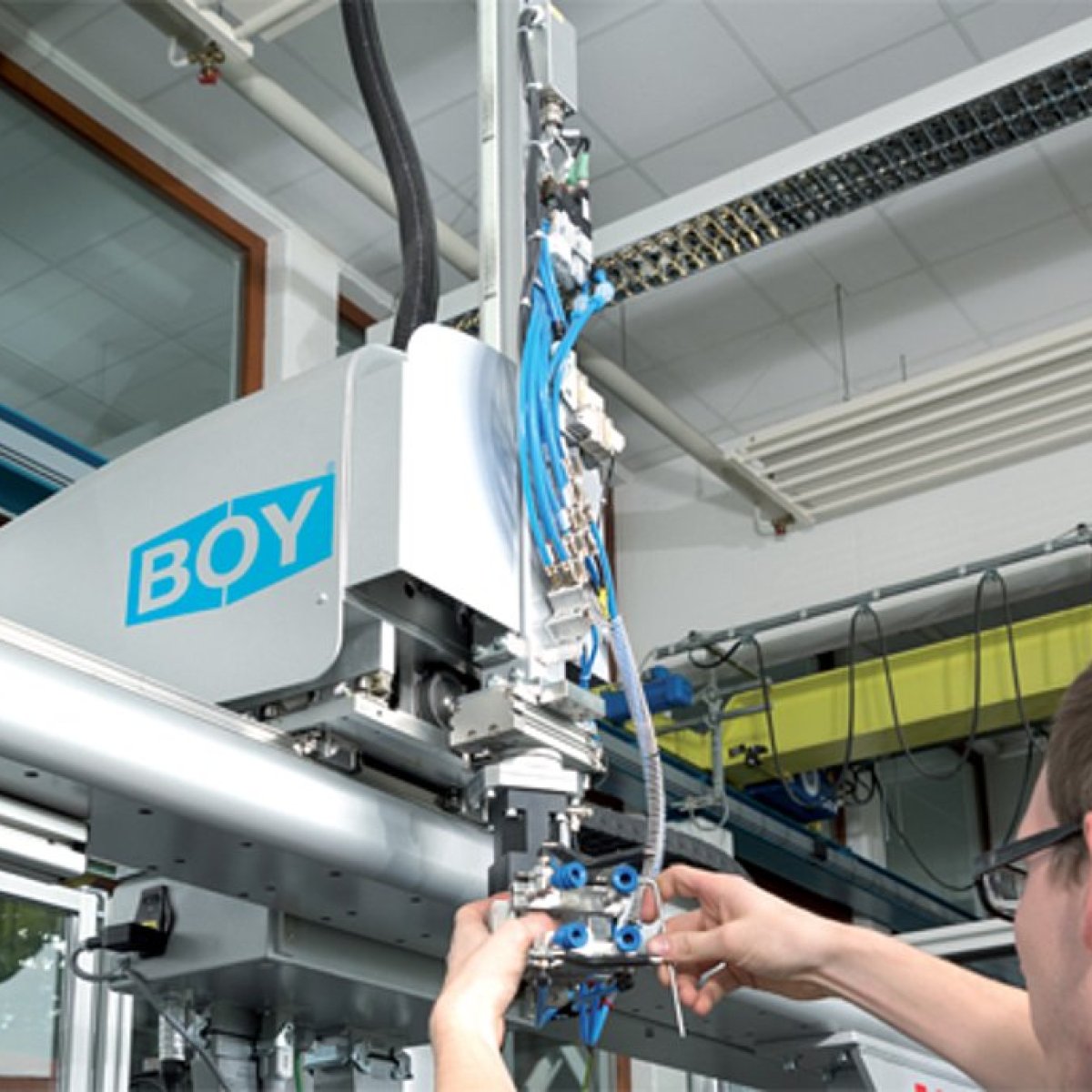

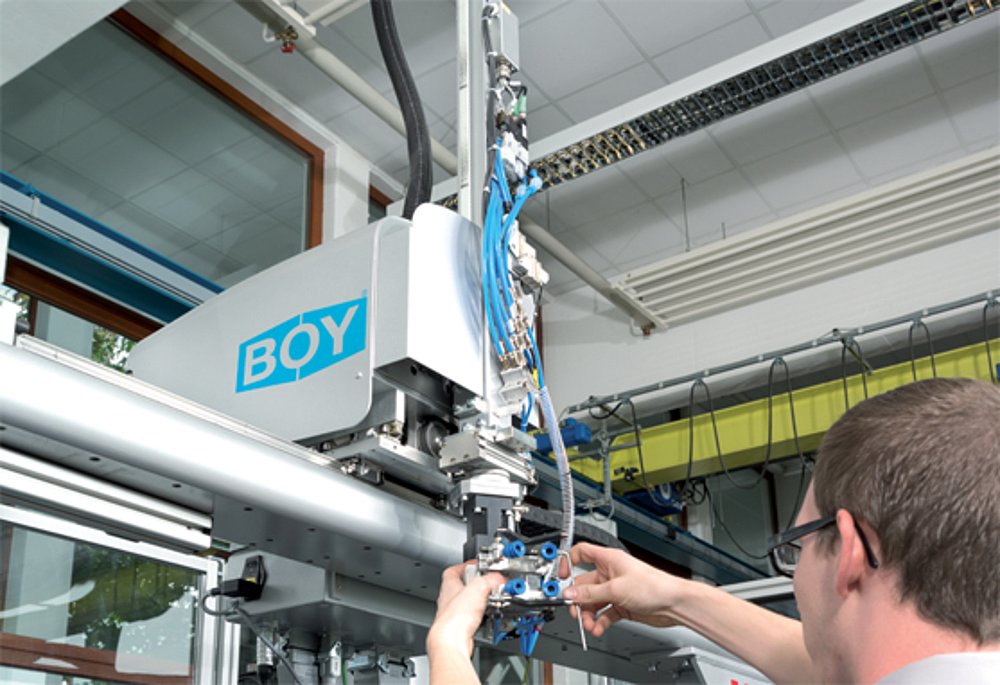

- easy automation
- worldwide service
Technical data
- Euromap Size:
600-56 / 600-69 / 600-82 / 600-110 / 600-215 - Screw Diameter:
18, 22, 24, 28, 32, 38, 42 - Max. Stroke Volume:
173.2 cm³ (theoretical) - Max. Injection Flow:
236.3 g/s (theoretical) - Max. Spec. Injection Pressure:
2798 bar - Max. Daylight Between Platen:
650 mm - Max. Opening Stroke:
400 mm - Distance Between Tie Bars:
360 x 335 mm
