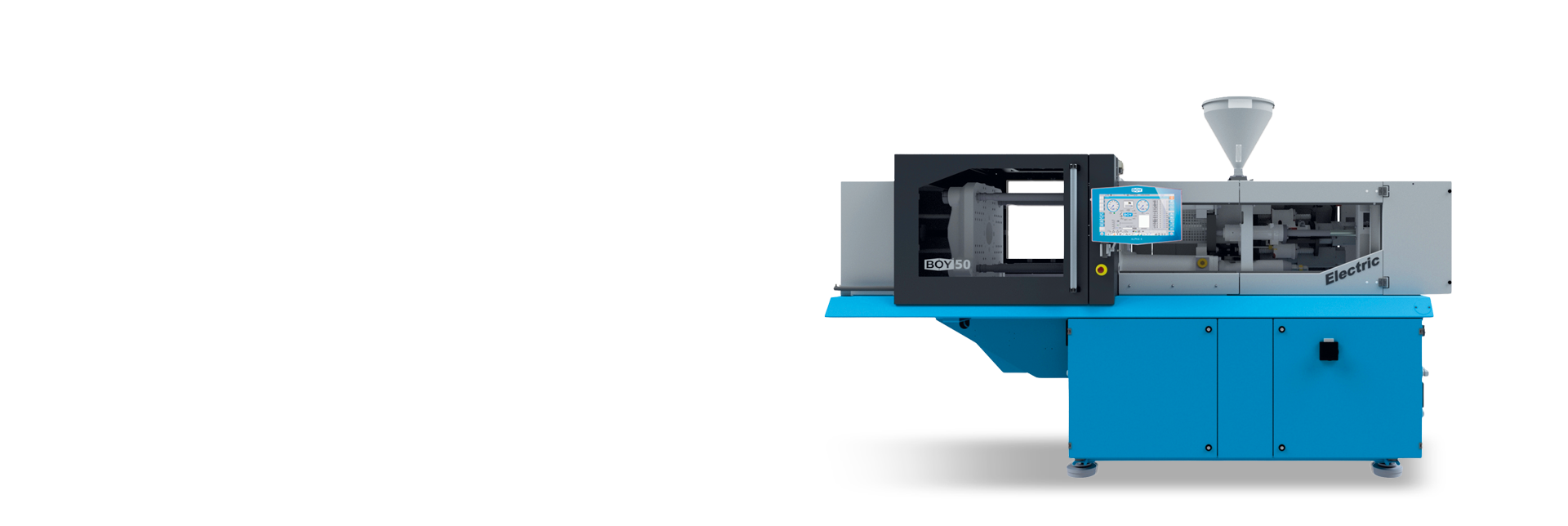

BOY 50 Electric – fully electric injection moulding machine for high dynamics & precision
Cutting-edge electronics meet automation in injection moulding

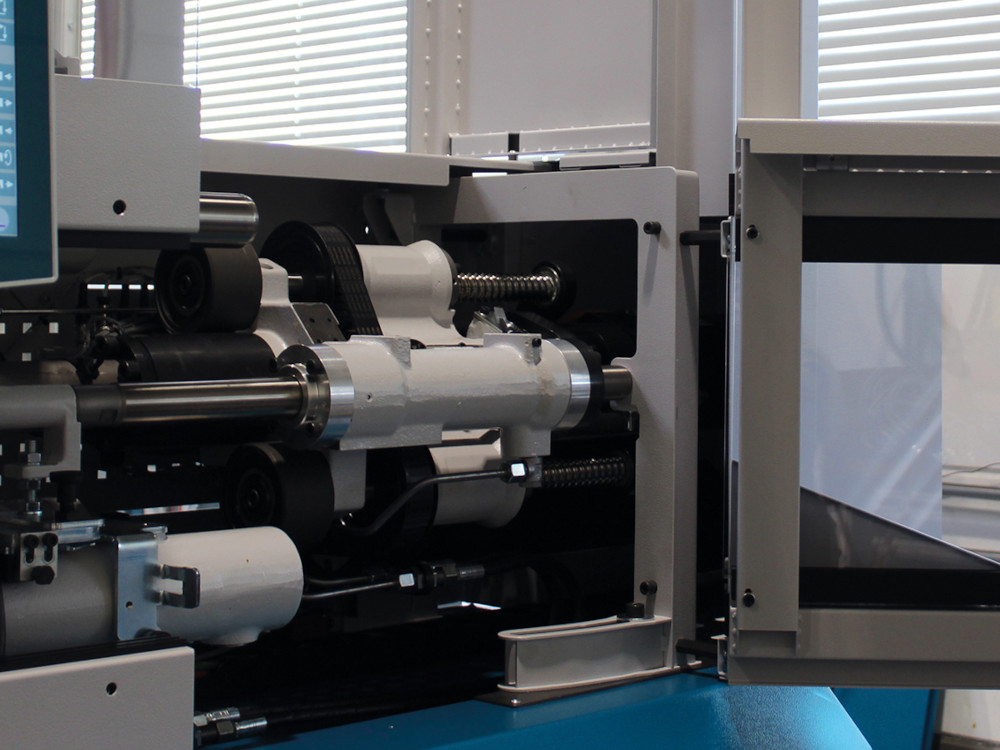

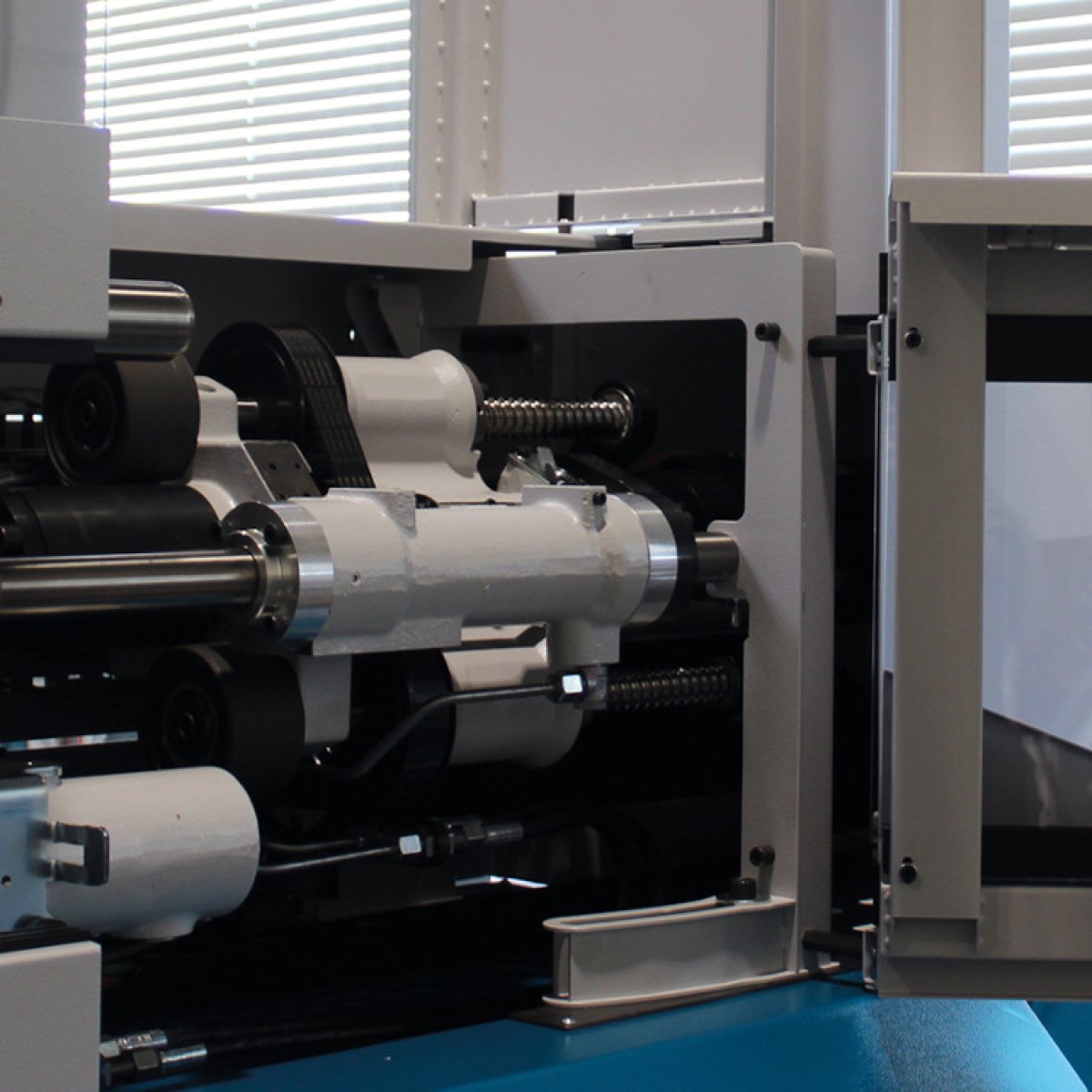

The BOY 50 Electric is a fully electric injection moulding machine with electromechanical drives for injection, plasticising, and ejection. With its newly developed universal injection unit and patented back-pressure measurement, it delivers exceptionally high dynamics, precise positioning, and reduced cycle times – ideal for automation in injection moulding and demanding plastics processing.
Compact, efficient & innovative
With its two-platen clamping unit and an oil- and lubricant-free mould area, the BOY 50 Electric combines energy-saving servo hydraulics with pressure intensifier and differential pressure technology. The electromechanical ejector ensures precise, dynamic movements without stick-slip. New safety technology (OSSD) and a compact design keep the footprint to a minimum – without compromising on performance or flexibility.
Highlights
- Parallel movement without double pump
- Compactness of a two-platen machine
- Highly dynamic injection unit

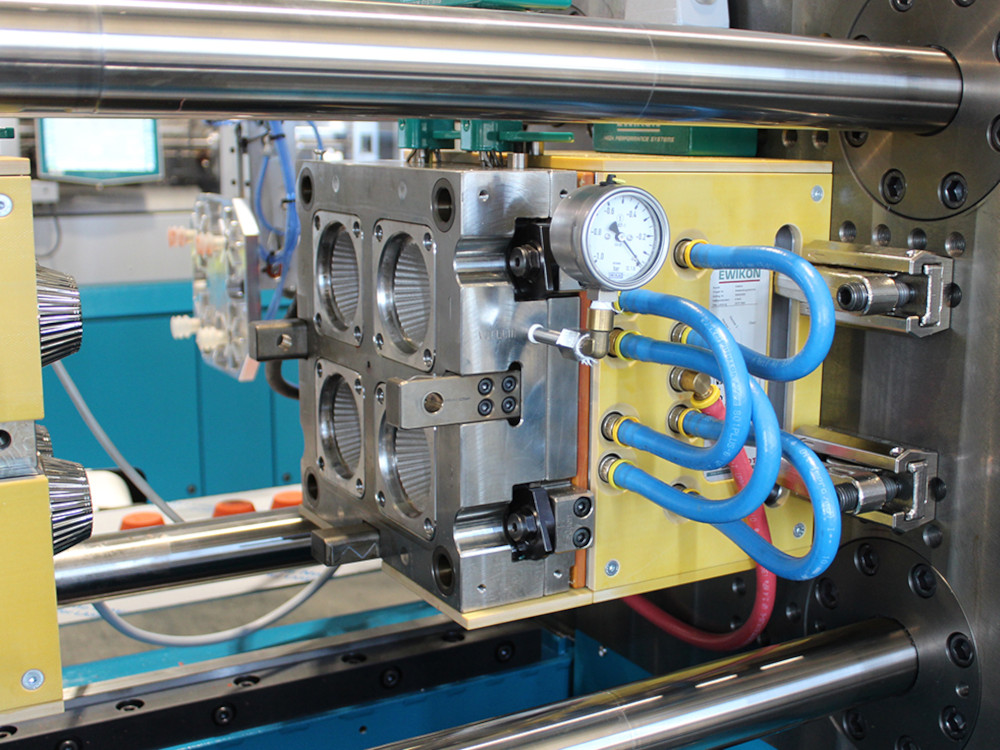

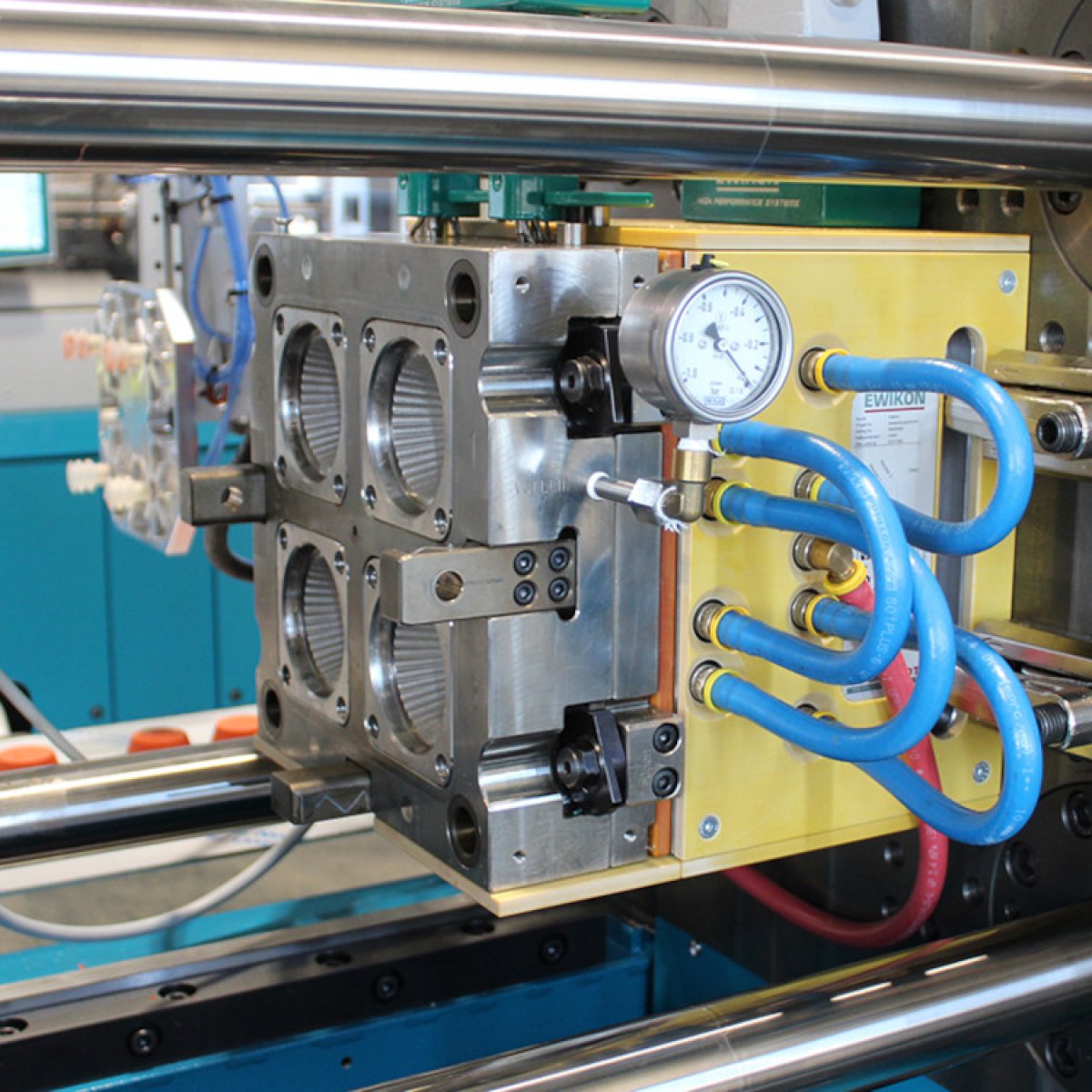

- Lubricant-free tool installation area

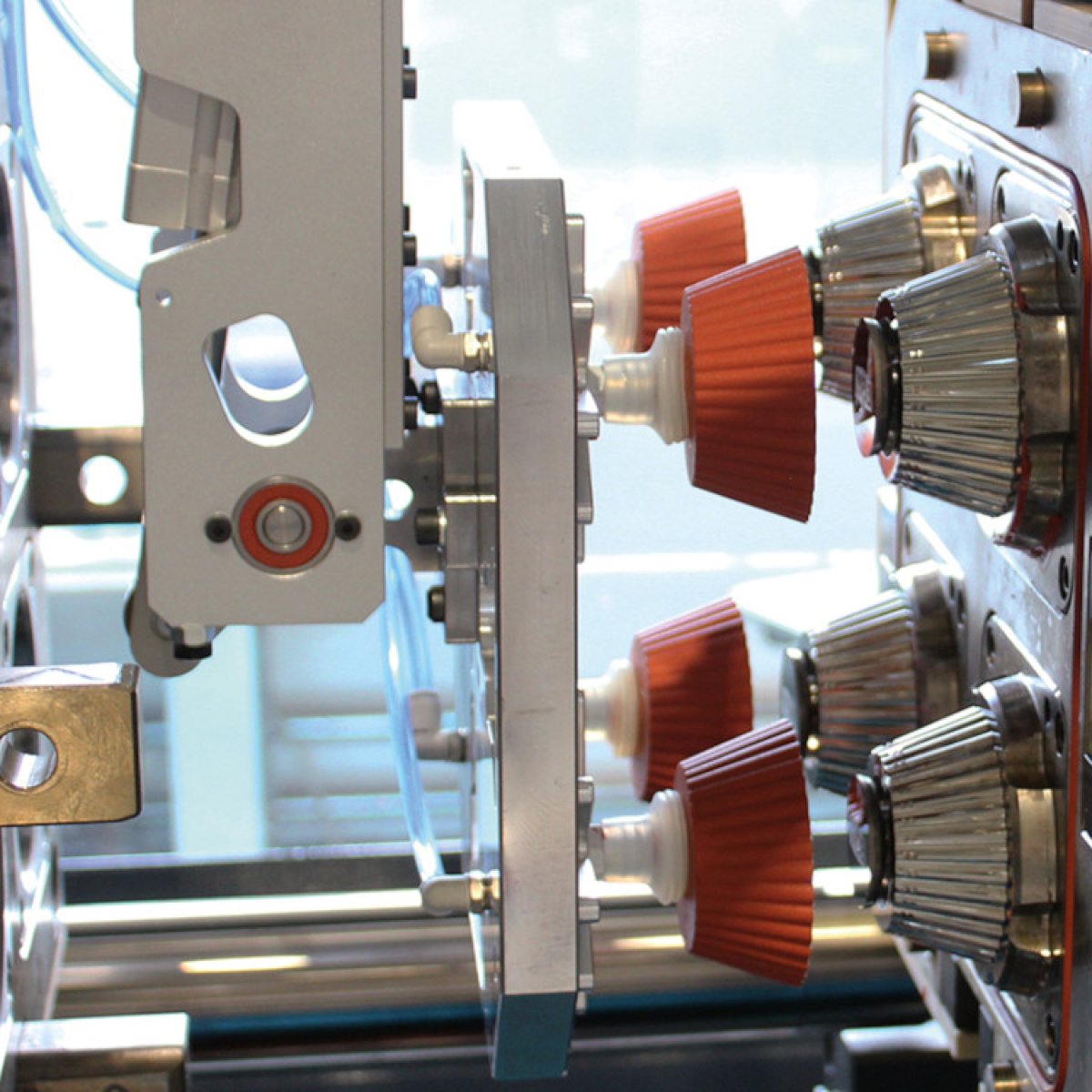

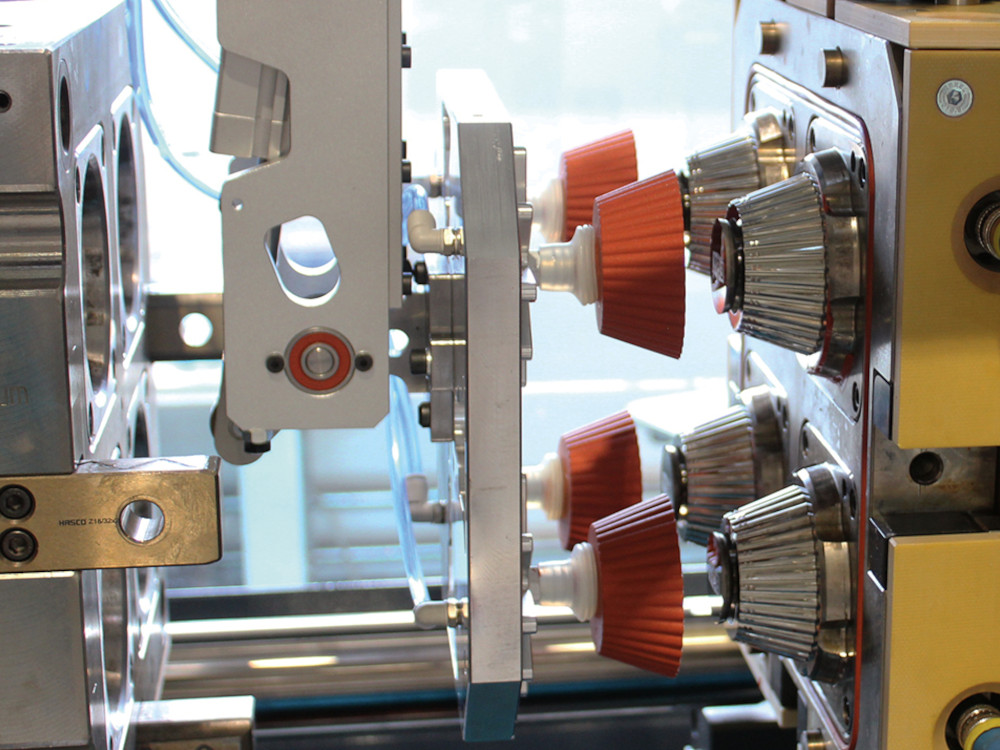

- Improved synchronised movement during ejection
- Parallel clamping force build-up for injection
- Highest positioning accuracy
- Possibility to actively brake
Technical data
- Euromap Size:
500-11 / 500-16 / 500-45 / 500-56 / 500-81 / 500-96 - Screw Diameter:
12, 14, 18, 22, 24, 28, 32 - Max. Stroke Volume:
76.5 cm³ (theoretical) - Max. Injection Flow:
134.3 cm³/s - Max. Spec. Injection Pressure:
2655 bar - Max. Daylight Between Platen:
650 mm - Max. Opening Stroke:
400 mm - Distance Between Tie Bars:
360 x 335 mm
