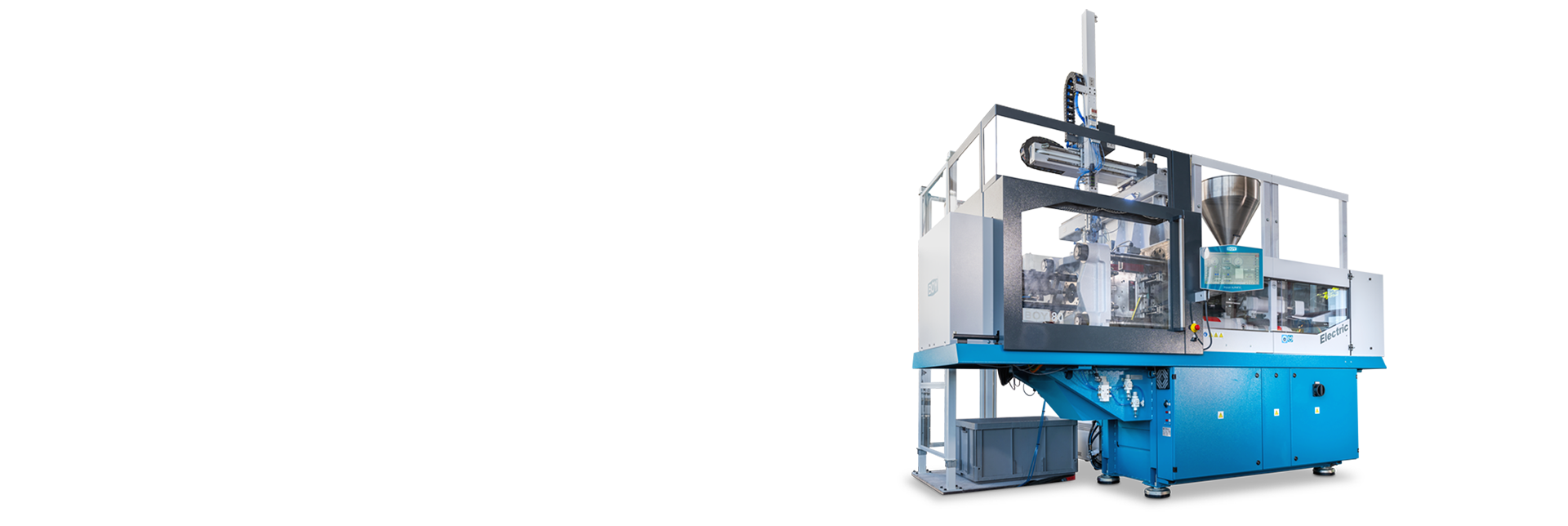

BOY 80 Electric – All-Electric Injection Moulding Machine for Maximum Dynamics and Precision
Innovation & Automation in Electromechanical Injection Moulding
The BOY 80 Electric is a modern injection moulding machine equipped with fully electric drives for injection, plasticising, and ejection. It delivers outstanding dynamics, precise positioning, and reduced cycle times – ideal for automation in injection moulding, tangible production benefits, and high-quality plastics processing.
Compactness & Energy-Efficient Top Performance

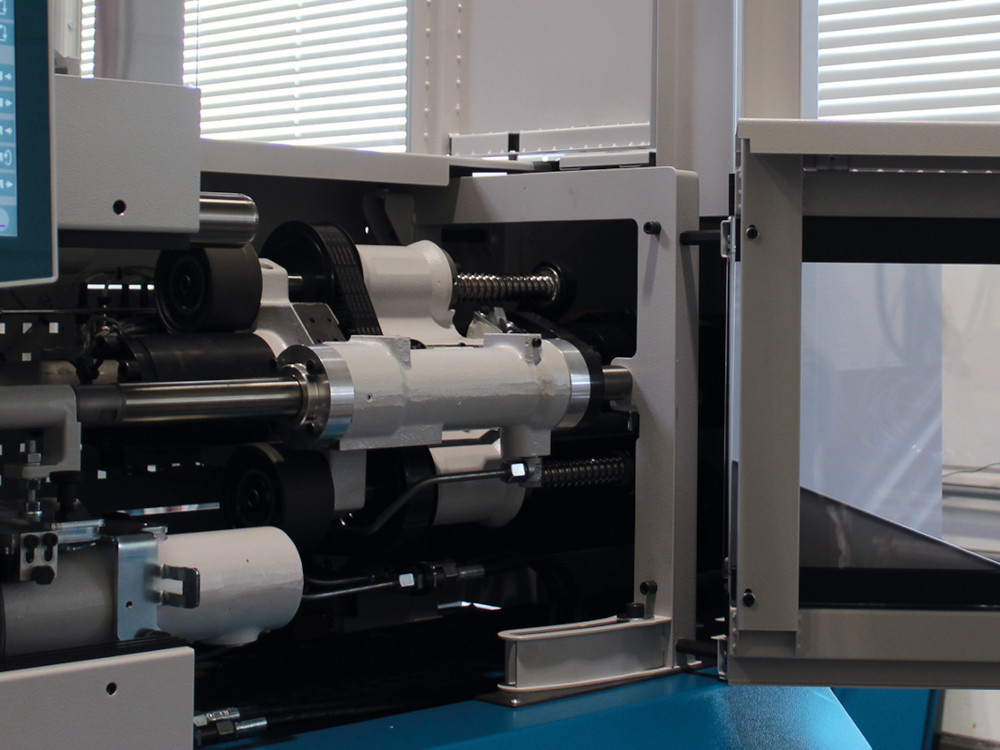

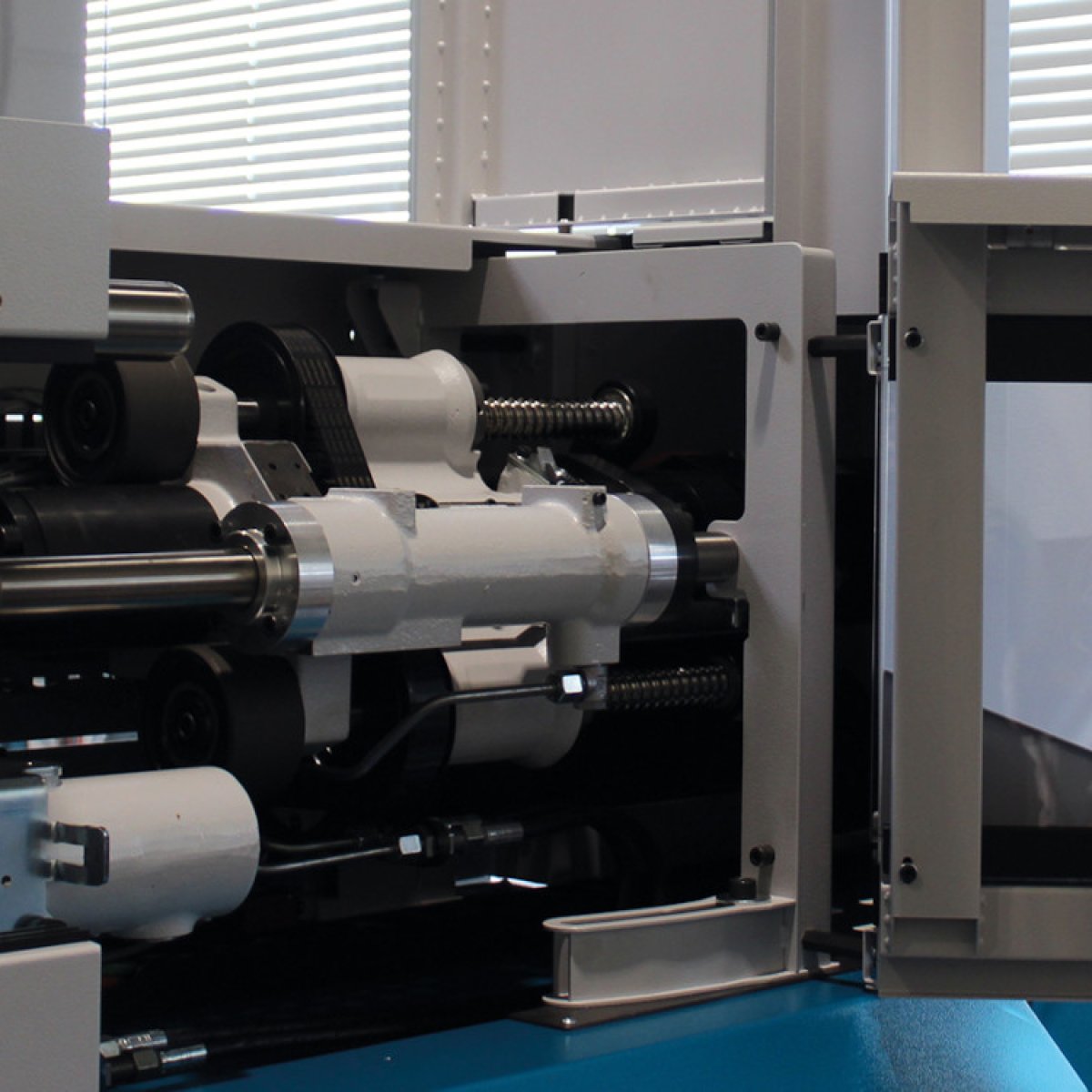

With its two-platen clamping unit and an oil-free mould area, the BOY 80 Electric combines energy-efficient servo hydraulics with pressure intensifier and differential pressure technology. The electromechanical ejector enables highly dynamic and precise movements – even during slow travel motions, free from stick-slip effects. A new, compact machine design including integrated safety technology (OSSD) makes it the optimal injection moulding machine for demanding applications.
Highlights
- Parallel movement without double pump
- Compactness of a two-platen machine
- Highly dynamic injection unit

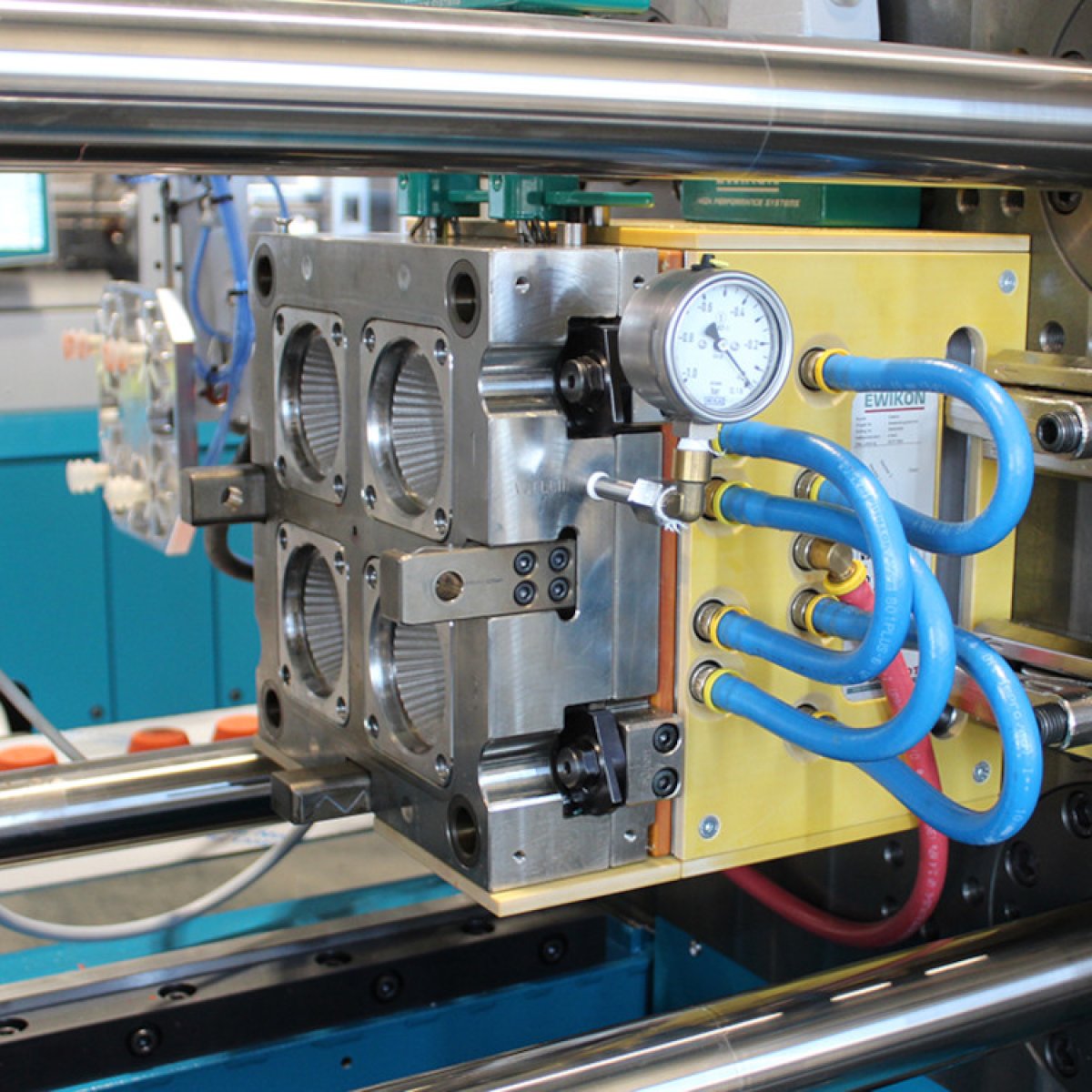

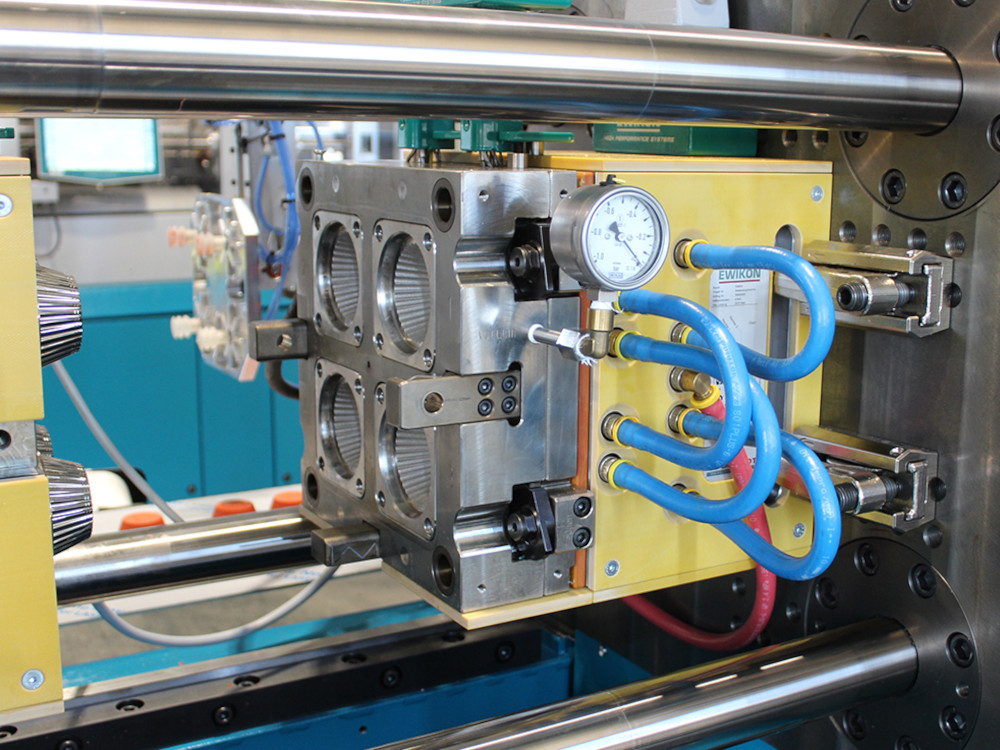

- Lubricant-free tool installation area
- Improved synchronised movement during ejection
- Parallel clamping force build-up for injection
- Highest positioning accuracy
- Possibility to actively brake
Technical data
- Euromap Size:
800-170 - Screw Diameter:
28, 32, 38, 42 - Max. Stroke Volume:
173.2 cm³ (theoretical) - Max. Injection Flow:
207.8 cm³/s - Max. Spec. Injection Pressure:
2210 bar - Max. Daylight Between Platen:
725 mm - Max. Opening Stroke:
475 mm - Distance Between Tie Bars:
430 x 360 mm
